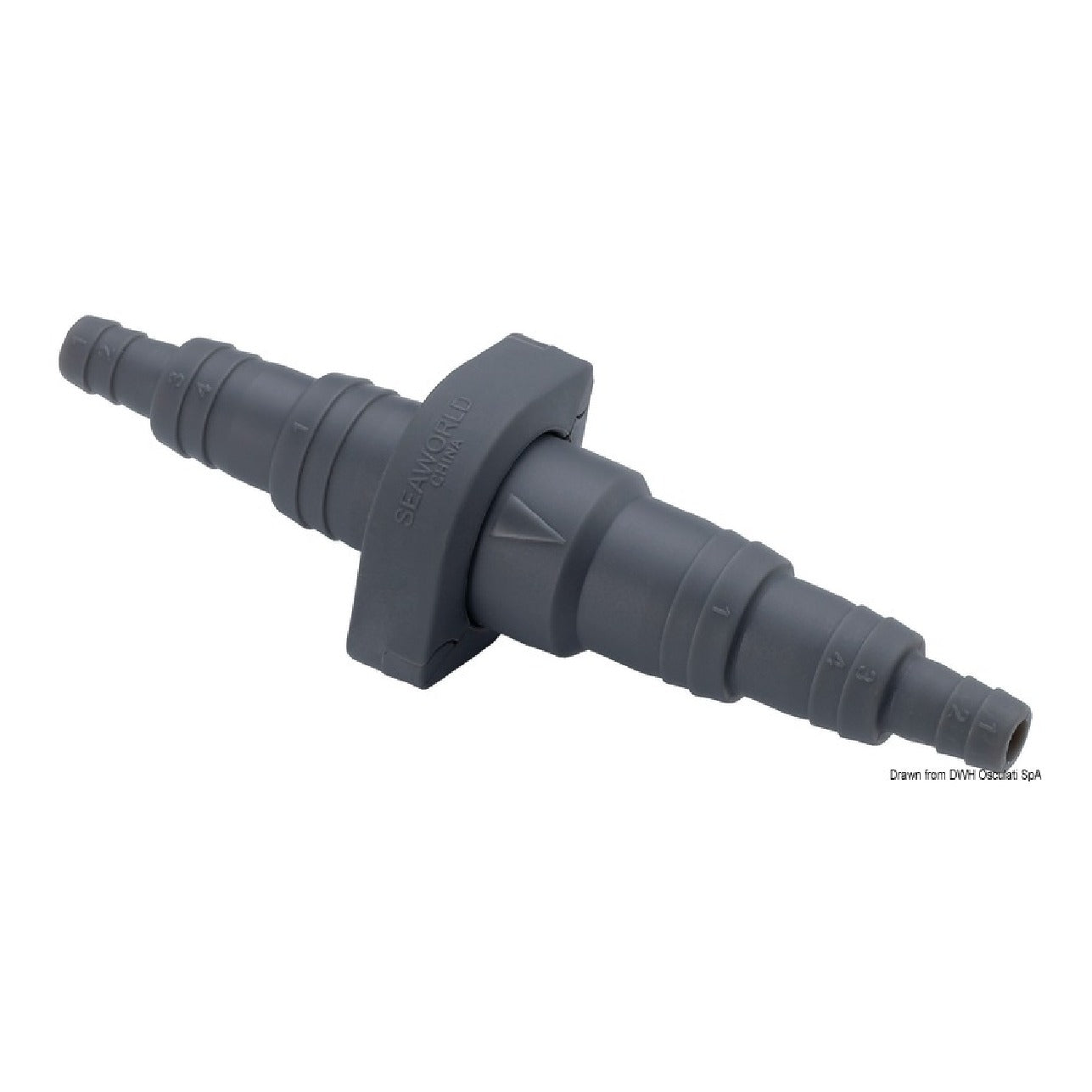

Check valves (or non-return valves ) are essential components in boat hydraulic systems. Their purpose is to prevent the backflow of water or liquids into the pipes, ensuring the proper functioning of pumps, marine toilets, bilges, and onboard plumbing systems.
🛠️ Types of Non-Return Valves
-
🔄 Check valves with clapet valves
- They work with an oscillating flap that closes when the water tries to flow back.
- Used in bilge systems and marine toilets.
-
💨 Ball check valves
- A ball moves to allow the passage of liquid and returns to position to block reflux.
- Ideal for water systems and fresh water pumps.
-
🚿 Spring-loaded check valves
- A spring pushes a piston against the valve seat, closing it when the pressure drops to zero.
- Used in pressure circuits and fresh water tanks.
-
⚓ Non-return valves for toilet flushing
- They prevent the return of waste water into the marine toilet, preventing bad odors and blockages.
📌 Where are they used on board?
✅ Bilge systems – To prevent water from returning to the bilge after pumping.
✅ Marine Toilets – To prevent wastewater backflow and maintain a hygienic system.
✅ Washdown and Freshwater Pumps – To maintain pressure and prevent water backflow.
✅ Engine cooling circuits – To prevent the backflow of seawater.
🛠️ Maintenance and Tips
🔹 Check the valve regularly – If water flows back, it may be blocked or worn.
🔹 Clean the valves periodically – Dirt or limescale buildup can compromise their operation.
🔹 Avoid debris in pumps – Using filters helps prevent clogs.
🔹 Replace worn gaskets and membranes – To maintain a perfect seal.
