Victron Energy Multiplus System 12/1600/70-16

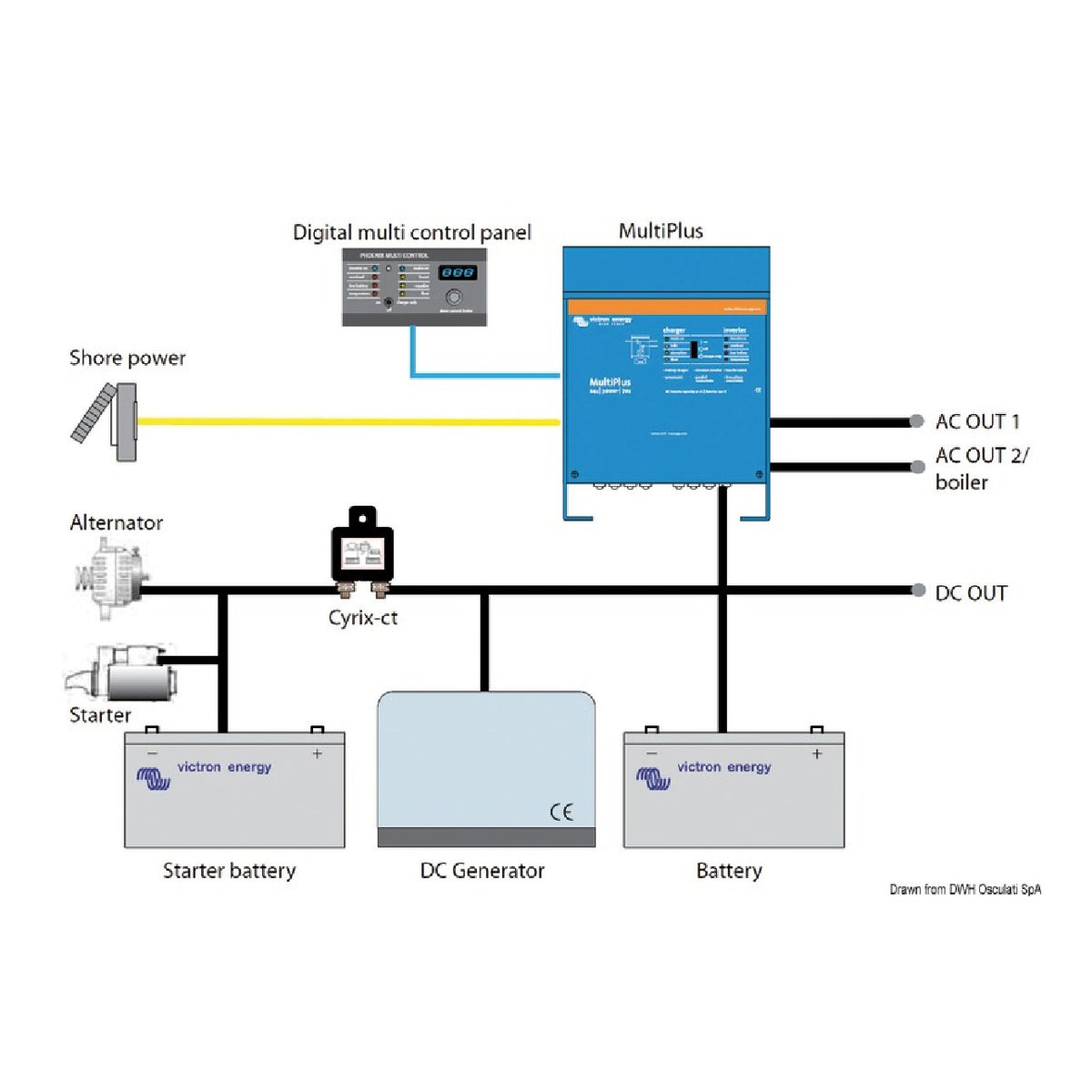

VICTRON MULTIPLUS combined system - Battery charger + Inverter § The system combines a pure sine wave inverter with a sophisticated battery charger featuring adaptive charging technology. Also compatible with lithium batteries. Two AC outputs. In the event of a power failure from the shore supply or generator, the unit switches to inverter mode to power the connected equipment without interruption. The second output is available only when an AC source is present. Devices that could discharge the battery, such as water heaters, should be connected to this output. Parallel + three-phase function. Up to 6 units can be connected in parallel. Three units of the same type can be connected for three-phase power. Up to 6 sets of 3 units can be connected in parallel. Power control: the MultiPlus is very powerful and can draw a lot of power from the shore supply or generator. With the MultiControl panel (14.270.32), the power drawn can be monitored and limited to a maximum value. The MultiPlus will then use only the remaining power to charge the batteries, taking the set limit into account. Power assist: if a peak power demand occurs for a short period, the MultiPlus will compensate for the insufficient power supply by drawing energy from the battery. When the load decreases, the excess power is used to recharge the batteries. The microprocessor-controlled battery charger features a 4-stage bulk-absorption-float-storage charging system, similar to Phoenix/Skylla chargers. - Aluminum enclosure - Protection against short circuits, overload, battery voltage too low or too high, high ripple frequency, etc. § Type, C12/1600/70, V-DC input, 9.5 - 17, Inverter power W, 1600, V output, 230VDC ± 2%, Battery charging current A, 70+4, No. of outputs, 1+1*, mm, 465x270x120, 10
