Garmin Fusion Signature Series 5-Channel 1600W Marine Amplifier 010...

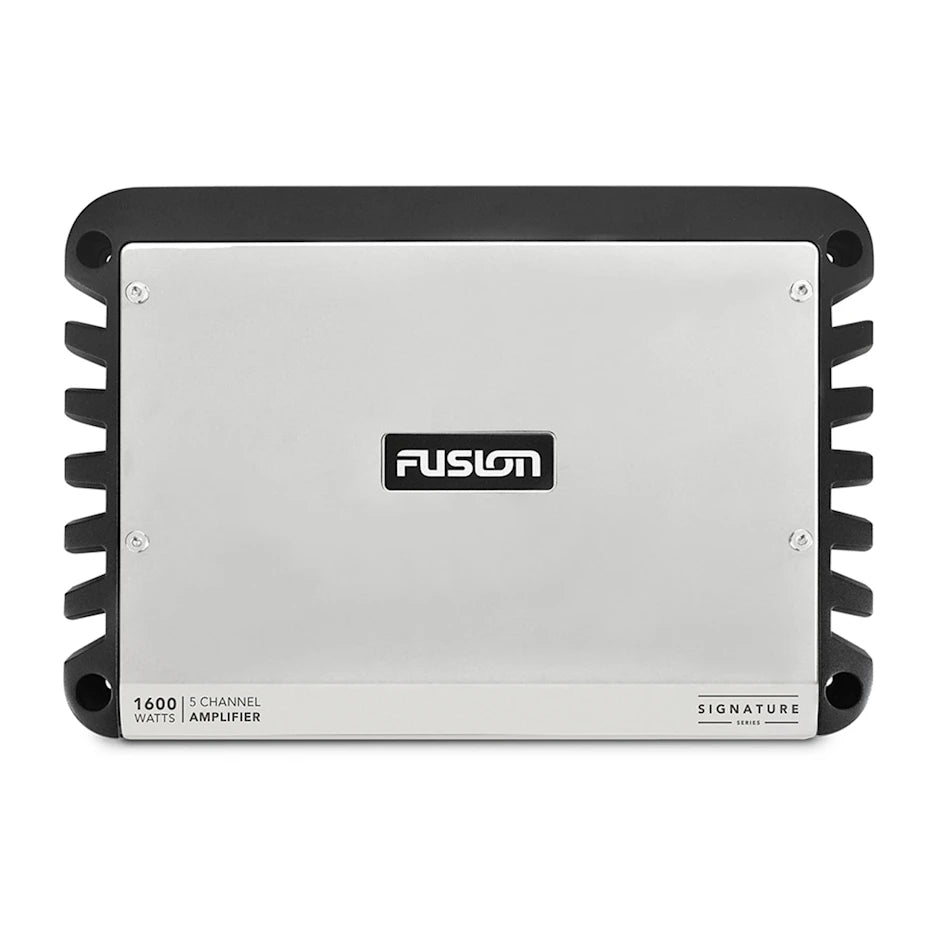

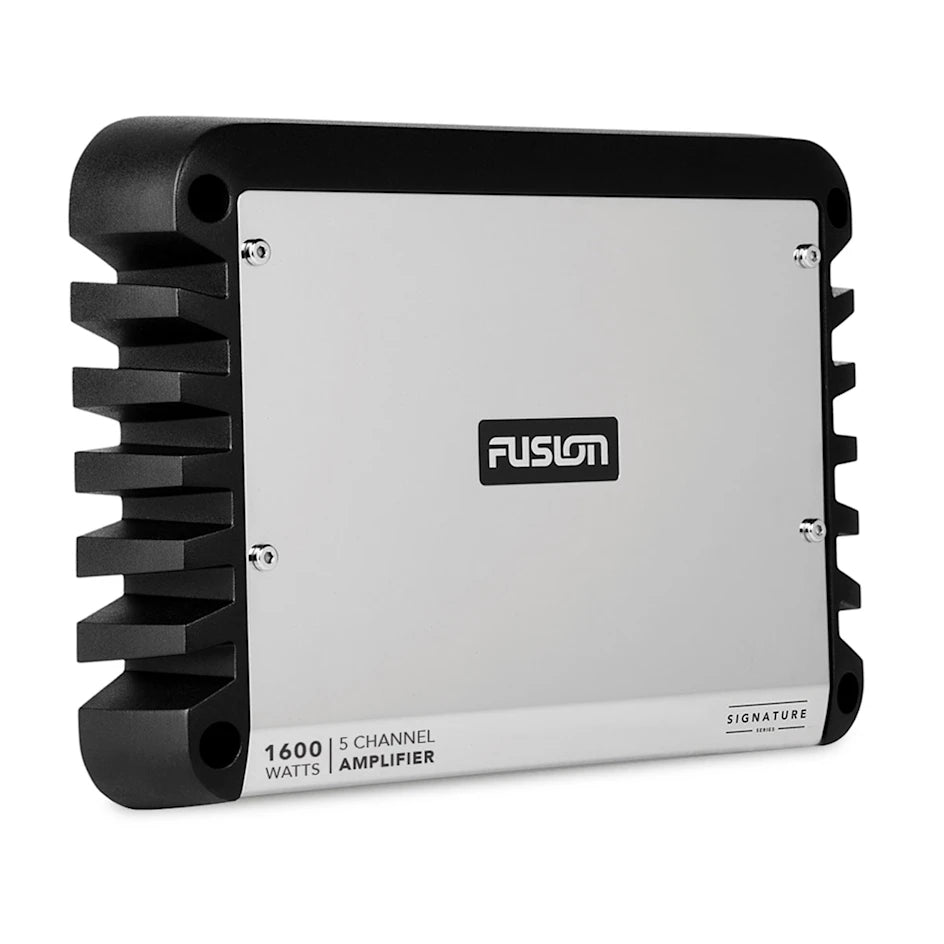

The Fusion Signature Series 5-Channel Amplifier (part number 010-01968-00) is a benchmark for marine audio entertainment. With high power (up to 1600W peak) and the efficiency of Class D technology, it can power high-performance speakers and subwoofers while reducing the impact on your boat's battery.
Built for marine environments, it features a conform-coated circuit board, an aluminum alloy heatsink, and a chassis designed to resist corrosion, vibration, saltwater, and UV rays. Installation is flexible and allows for multiple configurations: for example, four speakers plus a subwoofer, or two speakers per channel at 2 Ω, or channels bridged at 4 Ω.
Perfect for those who want powerful, dynamic and reliable sound on board.
Main features
- 5-Channel Class D Marine Amplifier.
- Peak power: 1600 W (for 5-channel configuration)
- Typical configuration: 80 W RMS × 4 channels + 250 W RMS × 1 channel @ 4 Ω, 1% THD
- 2 Ω Stability: 130W RMS × 4 + 330W RMS × 1 channel @ 2 Ω, 1% THD
- Selectable high-pass/low-pass filters, variable bass boost
- True-Marine Construction: Conform-coated PCB, alloy heatsink, tested for marine environments
- Typical power supply: 10.8 – 16 V DC for 12 V versions
- Warranty: 3 years (for Signature Series)
Advantages and benefits
- High power allows for a full-size audio system with multiple zones and subwoofers, ideal for pleasure boats, yachts or premium marine environments
- Class D technology efficiency: lower consumption, less stress on the vessel's electrical system
- Versatile installation: supports a wide range of sound configurations (speakers + subwoofer + scaffolding)
- Reliability in marine environments: materials and construction designed to withstand splashes, salinity, vibrations, humidity
- Easy tuning with filter, bass boost, and bridging controls: allows you to adapt the audio to the specific environment of your boat
Package Contents
- Fusion Signature Series 5-Channel Amplifier (Part No. 010-01968-00)
- Mounting accessories (self-tapping screws, hex keys)
- User manual / installation guide (including wiring and configuration details)
Technical specifications
Power and performance
- Total peak: 1600 W (5-channel model)
- RMS @ 4 Ω: 80 W × 4 + 250 W × 1 (5-channel)
- RMS @ 2 Ω: 130 W × 4 + 330 W × 1 (5-channel)
- Frequency response: 10 Hz – 50 kHz (4/5-channel)
Construction & Dimensions
- Dimensions (4/5-channel model): Approx. 300mm × 210mm × 50mm (W × D × H)
- “True-Marine” marine protection class (resistance to saltpetre, vibrations, humidity)
Food & Consumption
- Operating voltage: 10.8 – 16 V DC for 12 V versions
- Standby consumption: < 1 mA @ 14.4 V DC (4/5/6/8 channel models)

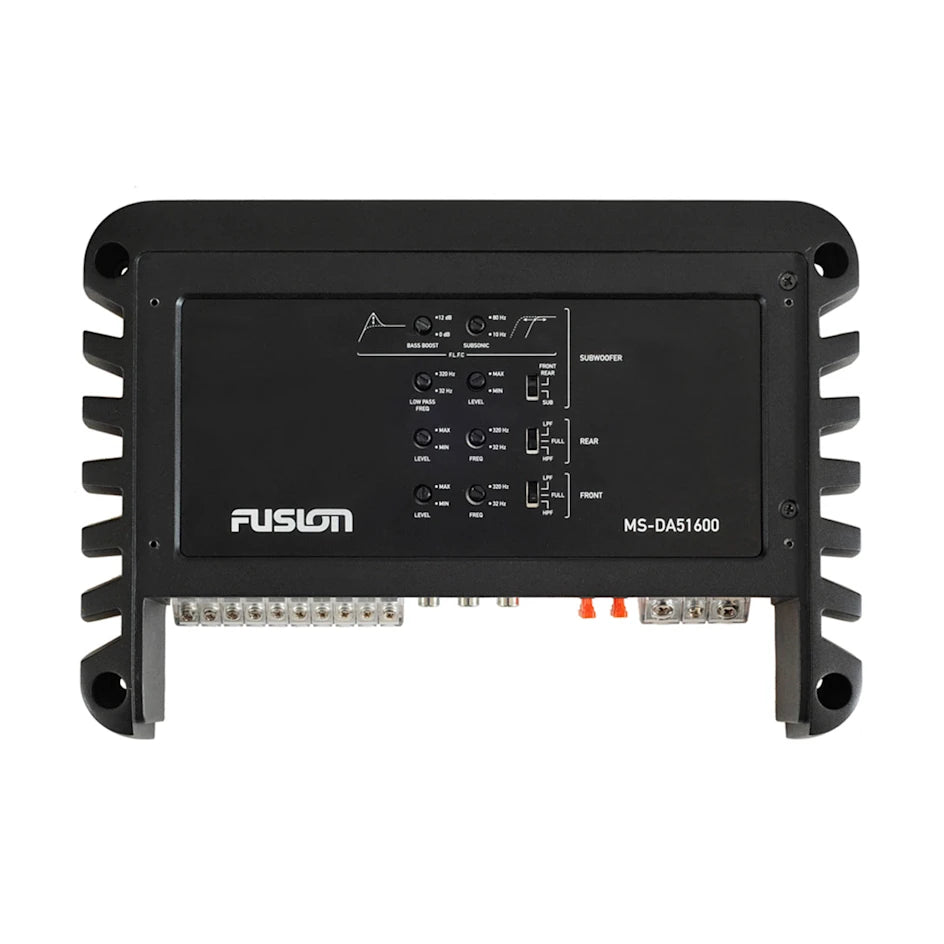

Installation & tuning
- Selectable HPF/LPF filters
- Variable bass boost up to +12 dB (subwoofer zone)
- Ability to connect two speakers per channel at 2 Ω or bridge two channels at 4 Ω for more power
| Item | Description | Codice FUSION | Modello | V | N° canali | Potenza max W | A | misure mm | |
|---|---|---|---|---|---|---|---|---|---|
| 29.842.01 | MS-APDA214 Amplificatore 140W 2 canali | 010-02569-00 | MS-APDA214 | 12 | 2 | 140 | 16 | 47,5 x 100 x 115 | |
| 29.842.03 | SG-DA41400 Amplificatore 1400 W 4 canali Classe D | 010-01969-00 | SG-DA41400 | 12 | 4 | 1400 | 80 | 300 x 210 x 50 | |
| 29.842.04 | SG-DA51600 Amplificatore 1600 W 5 canali Classe D | 010-01968-00 | SG-DA51600 | 12 | 5 | 1600 | 80 | 300 x 210 x 50 | |
| 29.842.05 | MS-AP61800 Amplificatore 1800 W 6 canali | 010-02284-65 | MS-AP61800 | 12 | 6 | 1800 | 125 | 62 x 297 x 229,3 |
- Codice FUSION
- 010-02569-00
- Modello
- MS-APDA214
- V
- 12
- N° canali
- 2
- Potenza max W
- 140
- A
- 16
- misure mm
- 47,5 x 100 x 115
- Codice FUSION
- 010-01969-00
- Modello
- SG-DA41400
- V
- 12
- N° canali
- 4
- Potenza max W
- 1400
- A
- 80
- misure mm
- 300 x 210 x 50
- Codice FUSION
- 010-01968-00
- Modello
- SG-DA51600
- V
- 12
- N° canali
- 5
- Potenza max W
- 1600
- A
- 80
- misure mm
- 300 x 210 x 50
- Codice FUSION
- 010-02284-65
- Modello
- MS-AP61800
- V
- 12
- N° canali
- 6
- Potenza max W
- 1800
- A
- 125
- misure mm
- 62 x 297 x 229,3
