Blue Sea | SKU:
51_4104160___51_4104160
Blue Sea LED Switch
Regular price
€37,99
Unit price
Tax included
Shipping calculated at checkout.
Disponibile · consegna in 3-7 giorni lavorativi
Blue Sea LED Switch - Blue Off-On is backordered and will ship as soon as it is back in stock.
Pickup available at AmerigoStore Picking Point
Usually ready in 2-4 days
Need help? Contact us
Need help? Contact us
Delivery and Shipping
Delivery and Shipping
You can find the delivery time for this product written above, under the price. Days are working days and are counted from the day of the order.
- I ship with GLS or FedEx, always tracked: as soon as the parcel leaves, I'll email you the number so you can follow it.
- In Italy, shipping is free over 199 €. Bulky items have a separate rate, which you'll see at checkout.
- You can pay on delivery, in cash to the GLS courier.
- You can also collect your order for free in Monza, at via Gabriele D'Annunzio 7: I'll message you when your order is ready.
- I also ship to Switzerland and to several European Union countries: you'll see the cost at checkout.
Blue Sea LED Switch
Regular priceFrom
€31,99
Unit price

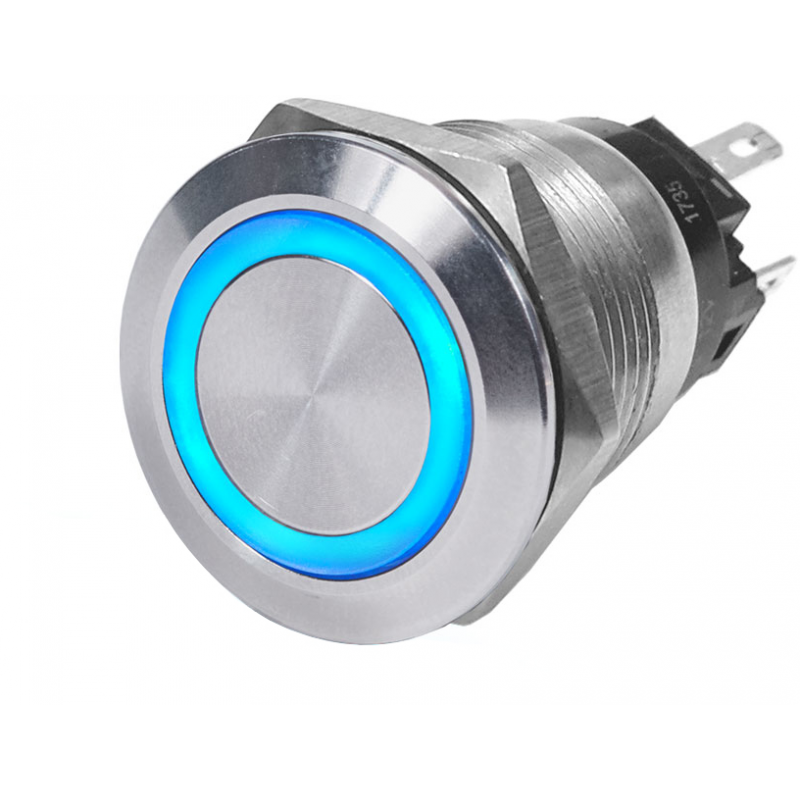

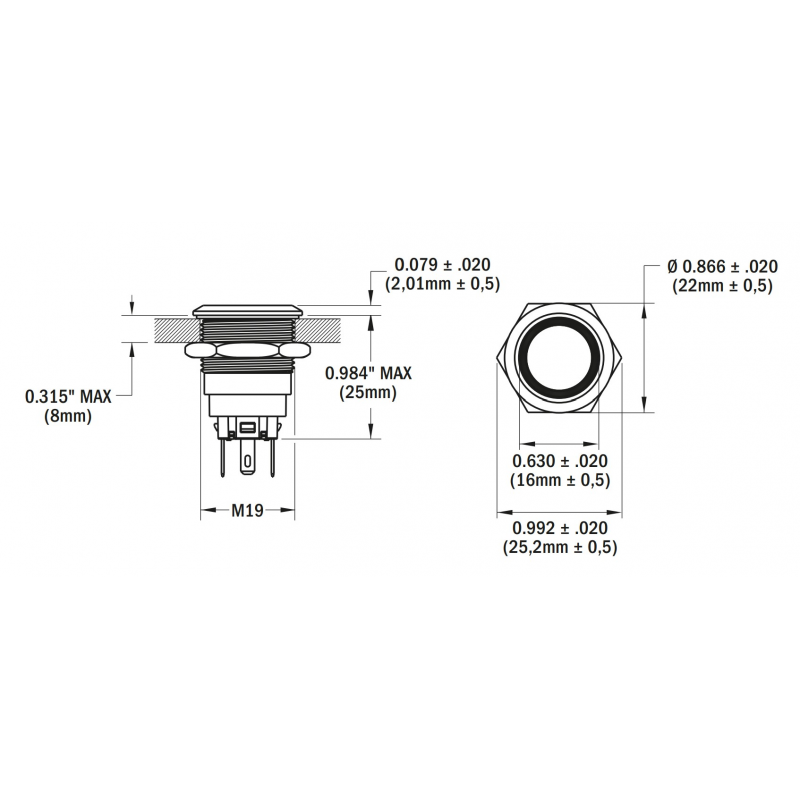

BLUE LED OFF-ON SWITCH. The Blue Sea Systems backlit push-button switch, blue LED, OFF-ON operation: made of corrosion-resistant 316 stainless steel, with IP67 protection rating and reverse polarity protection. Designed for control panels, it allows wiring as normally open or normally closed depending on the system, and is electrically configurable as SPDT or SPST.Technical specifications:- 316 stainless steel body, corrosion-resistant- Waterproof, IP67 protection rating- Protected against reverse polarity- Rating 10A @ 12V DC resistive, 3A inductive- Rated voltage 12V DC- Maximum LED current 20mA- 0.110" quick-connect terminals- Mounting hole Ø 19 mm, maximum panel thickness 7.87 mm- 40,000 switching cycles, 5 terminals- Operating temperature -30°C/+70°C, storage -55°C/+85°C- Weight 0.09 kg- Original ref. 4160
Technical specifications
- Alimentazione
- 12 Volt - 10 Amp
| Variant | Rif. Originale |
|---|---|
| Blu Off-On | 4160 |
| Blu Off-(On) | 4161 |

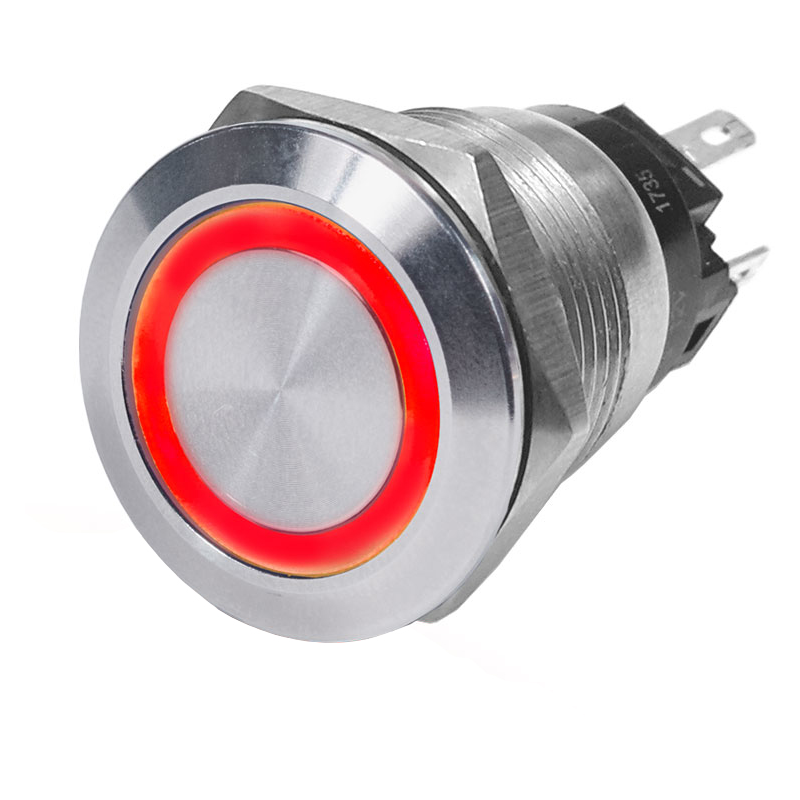

| Rosso Off-On | 4162 |
| Rosso Off-(On) | 4163 |
