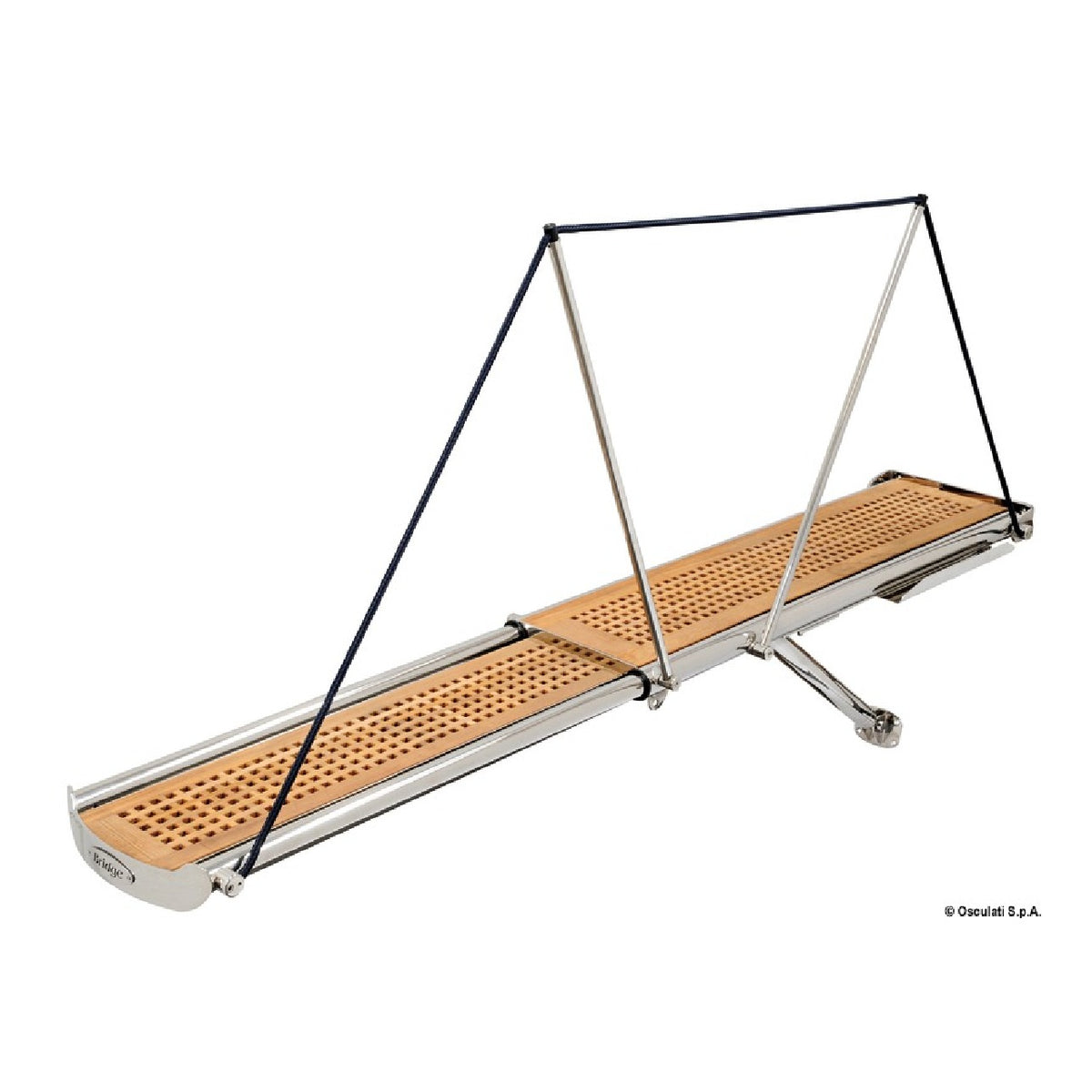

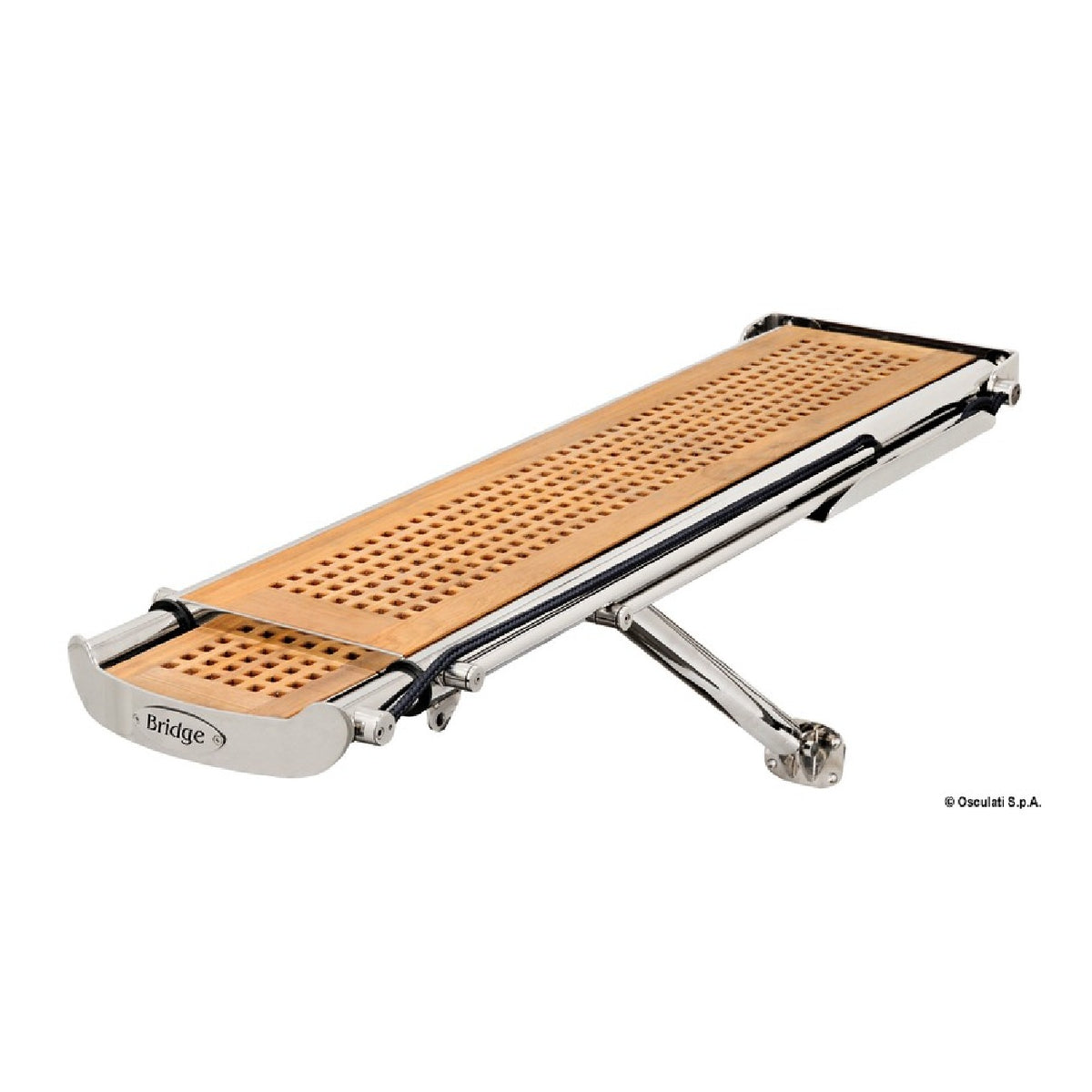

Telescopic hydraulic gangway bridge with mirror-polished AISI 316 s...
Automatically folding davits that can be positioned on either side of the gangway. Burma TEAK wood davit arm with smooth-edged holes. Electronic control unit with a very simple “PLUG & PLAY” wiring system. The gangway’s pivot point can be adjusted to achieve the optimal position for the lifting cylinder. The gangway, available in 12 V or 24 V versions, comes complete with: - hydraulic control unit with solenoid valve; - high-pressure hydraulic piping with AISI 316 stainless steel fittings; - electronic control unit; - flush-mount control panel; - remote control; - davits; - stern plate; - installation and user instructions.
| Item | Description | Variante | Versione | LE mm | LC mm | MD minimo | H mm | Capacità sollevamento kg | peso | |
|---|---|---|---|---|---|---|---|---|---|---|
| 42.620.01 | Passerella idraulica Bridge 20 12 V | 12 V | Bridge 20 | 2000 | 1200 | 300 | 800 | 200 | 60 | |
| 42.620.03 | Passerella idraulica Bridge 23 12 V | 12 V | Bridge 23 | 2300 | 1360 | 300 | 800 | 200 | 64 | |
| 42.620.05 | Passerella idraulica Bridge 27 12 V | 12 V | Bridge 27 | 2700 | 1575 | 300 | 800 | 200 | 71 | |
| 42.620.07 | Passerella idraulica Bridge 30 12 V | 12 V | Bridge 30 | 3000 | 1735 | 320 | 800 | 150 | 75 | |
| 42.620.51 | Passerella idraulica Bridge 20 24 V | 24 V | Bridge 20 | 2000 | 1200 | 300 | 800 | 200 | 60 | |
| 42.620.53 | Passerella idraulica Bridge 23 24 V | 24 V | Bridge 23 | 2300 | 1360 | 300 | 800 | 200 | 64 | |
| 42.620.55 | Passerella idraulica Bridge 27 24 V | 24 V | Bridge 27 | 2700 | 1575 | 300 | 800 | 200 | 71 | |
| 42.620.57 | Passerella idraulica Bridge 30 24 V | 24 V | Bridge 30 | 3000 | 1735 | 320 | 800 | 150 | 75 |
- Variante
- 12 V
- Versione
- Bridge 20
- LE mm
- 2000
- LC mm
- 1200
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 60
- Variante
- 12 V
- Versione
- Bridge 23
- LE mm
- 2300
- LC mm
- 1360
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 64
- Variante
- 12 V
- Versione
- Bridge 27
- LE mm
- 2700
- LC mm
- 1575
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 71
- Variante
- 12 V
- Versione
- Bridge 30
- LE mm
- 3000
- LC mm
- 1735
- MD minimo
- 320
- H mm
- 800
- Capacità sollevamento kg
- 150
- peso
- 75
- Variante
- 24 V
- Versione
- Bridge 20
- LE mm
- 2000
- LC mm
- 1200
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 60
- Variante
- 24 V
- Versione
- Bridge 23
- LE mm
- 2300
- LC mm
- 1360
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 64
- Variante
- 24 V
- Versione
- Bridge 27
- LE mm
- 2700
- LC mm
- 1575
- MD minimo
- 300
- H mm
- 800
- Capacità sollevamento kg
- 200
- peso
- 71
- Variante
- 24 V
- Versione
- Bridge 30
- LE mm
- 3000
- LC mm
- 1735
- MD minimo
- 320
- H mm
- 800
- Capacità sollevamento kg
- 150
- peso
- 75
