Fusion | SKU:
29_29.850.05

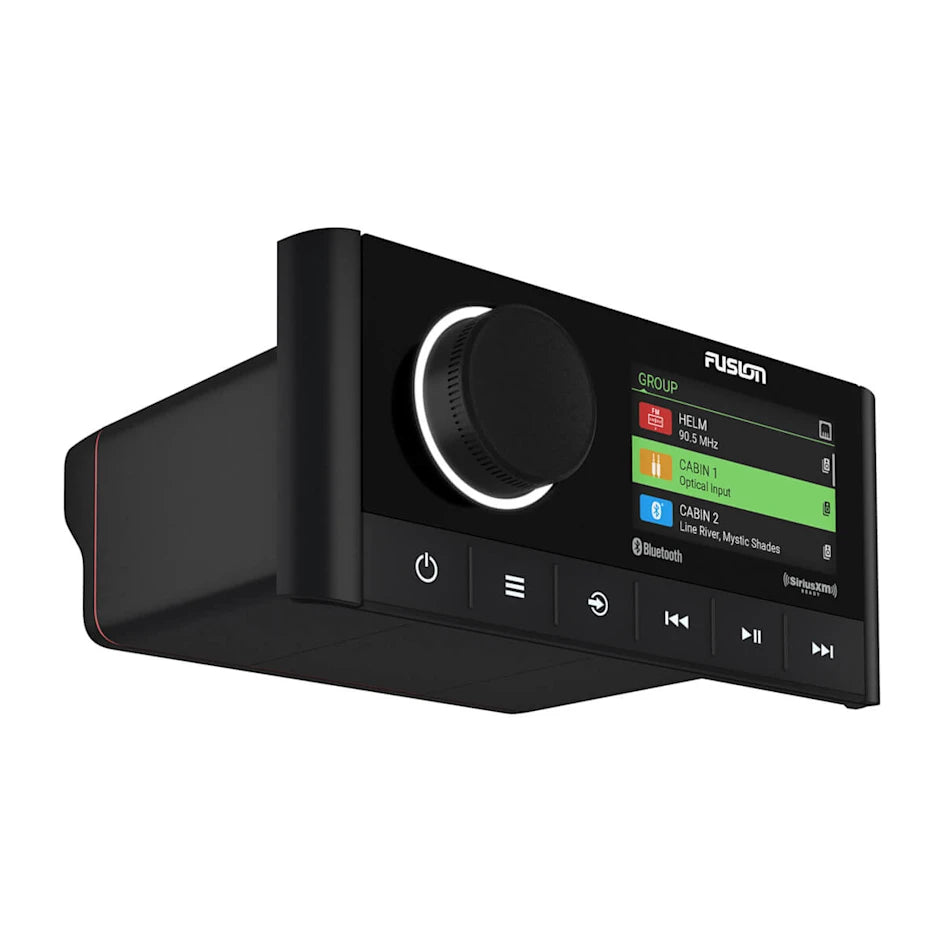

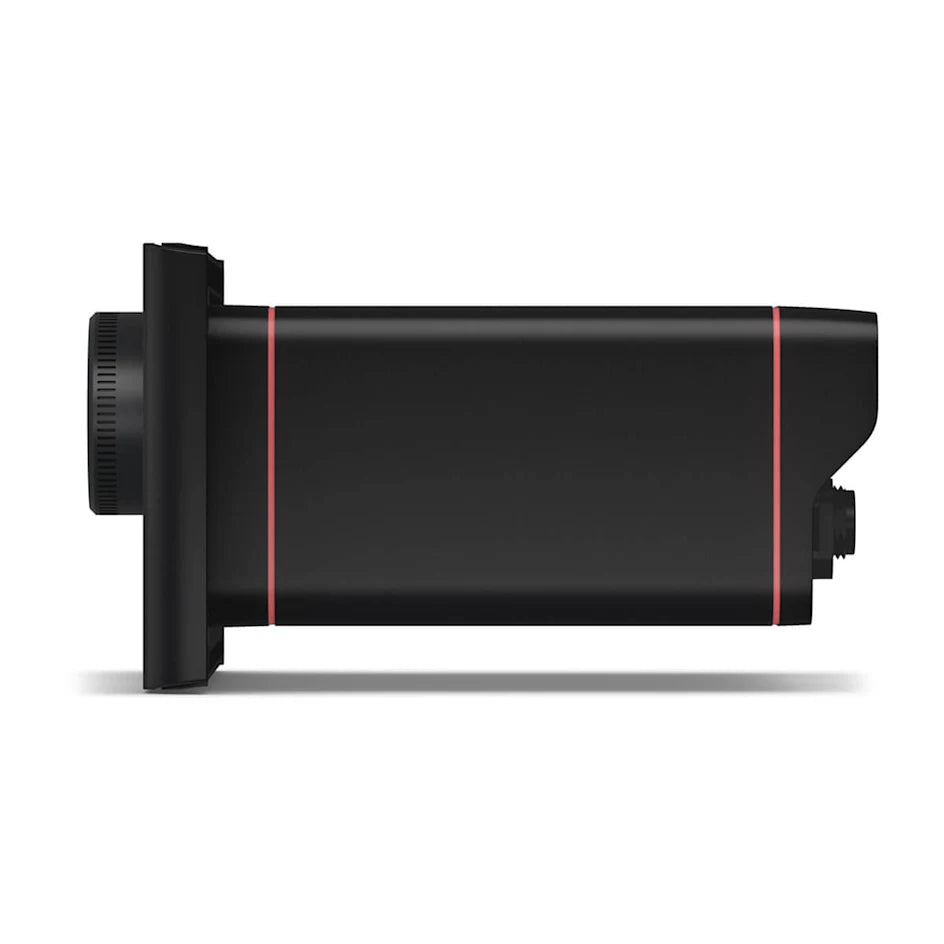

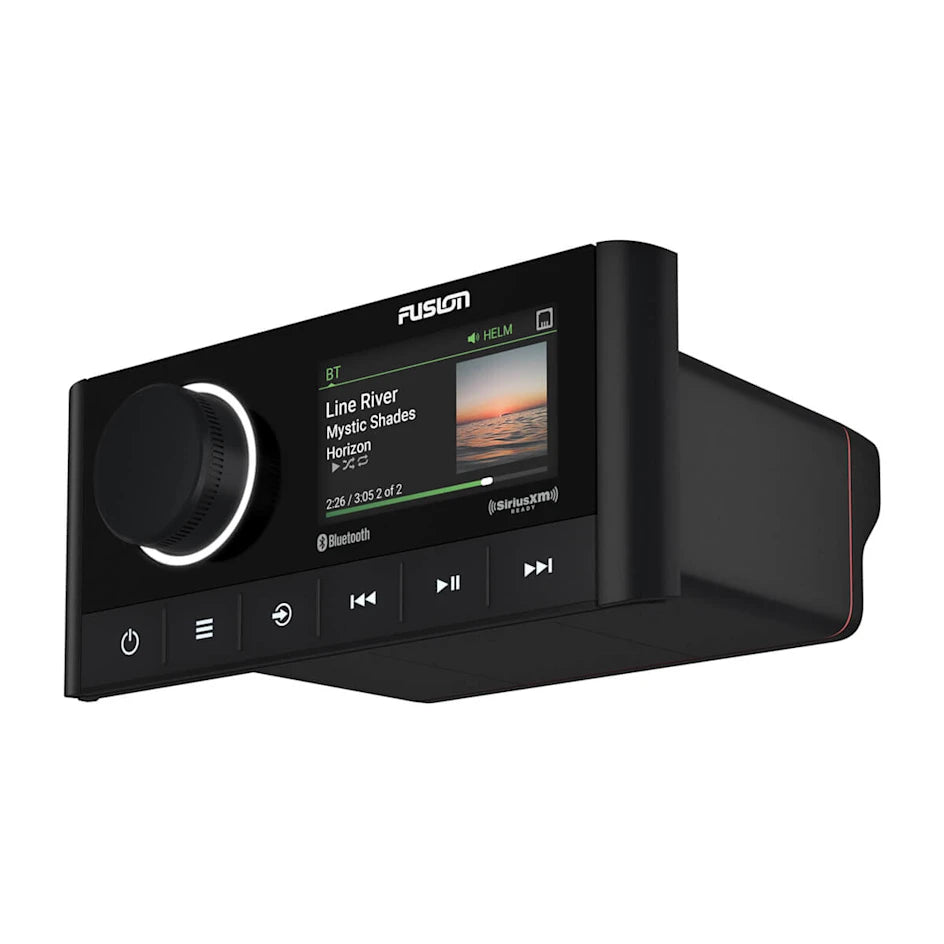

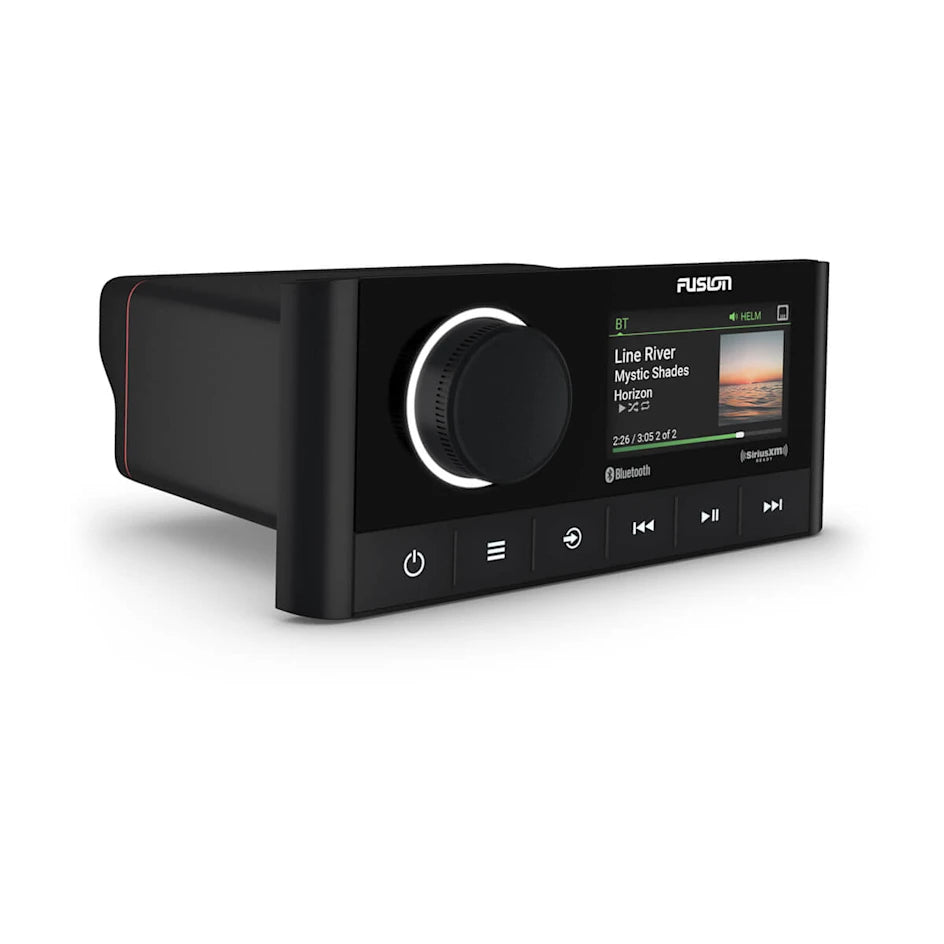

Garmin Fusion Apollo Marine Stereo with DSP 010-02138-00
Regular price
€574,99
Unit price
Tax included
Shipping calculated at checkout.
Spedito in 24/48h · consegna in 48h
Garmin Fusion Apollo Marine Stereo with DSP 010-02138-00 is backordered and will ship as soon as it is back in stock.
Pickup available at AmerigoStore Picking Point
Usually ready in 2-4 days
Need help? Contact us
Need help? Contact us
Delivery and Shipping
Delivery and Shipping
You can find the delivery time for this product written above, under the price. Days are working days and are counted from the day of the order.
- I ship with GLS or FedEx, always tracked: as soon as the parcel leaves, I'll email you the number so you can follow it.
- In Italy, shipping is free over 199 €. Bulky items have a separate rate, which you'll see at checkout.
- You can pay on delivery, in cash to the GLS courier.
- You can also collect your order for free in Monza, at via Gabriele D'Annunzio 7: I'll message you when your order is ready.
- I also ship to Switzerland and to several European Union countries: you'll see the cost at checkout.
Garmin Fusion Apollo Marine Stereo with DSP 010-02138-00
Regular price
€574,99
Unit price
Compact marine stereo with color LCD display, built-in Wi-Fi, AirPlay 2 audio streaming, DSP technology and support for up to 3 audio zones: designed for cutting-edge marine installations.
The Fusion Apollo MS-RA670 marine stereo (part number 010-02138-00) represents an advanced solution for onboard audio, combining modern connectivity, power, and high-quality sound. It offers audio streaming via Wi-Fi and AirPlay 2 support, DSP (Digital Signal Processing) to optimize audio performance in marine environments, and multi-zone control for up to 3 independent zones. The front panel is designed to “True-Marine” standards, with an IPX6/IPX7 rating on the front and ruggedness designed for the salt, vibration, and humidity typical of the marine environment.
The color LCD interface simplifies navigation between sources (Bluetooth, USB, AUX, digital optical input, AM/FM, UPnP) and allows over-the-air firmware updates. Compatibility with PartyBus™ networks and on-board multifunction displays/instruments allows for seamless integration into your boat's audio system.
Main features
- Color LCD display
- Built-in Wi-Fi with audio streaming, AirPlay 2 support
- Integrated DSP technology for audio optimization
- Multi-zone management up to 3 independent audio zones
- Support for multiple sources: Bluetooth, USB, AUX, digital optical input, AM/FM, UPnP
- Front panel with IPX6/IPX7 protection rating; electronics designed for nautical environments
- PartyBus™ network compatibility for audio synchronization across multiple units
- Integration with multifunction displays, NMEA 2000 networks and boat remote controls
Advantages and benefits
- High and customizable audio quality thanks to the DSP: adjustable bass, treble and ambience
- Smooth, high-quality streaming with Wi-Fi and AirPlay 2: convenient for listening to music from modern services/apps
- Versatility of use thanks to the multi-zone: each area of the boat can have its own music or be synchronized
- Simplified installation and control: intuitive interface, digital network support, firmware updates
- Reliability at sea: “True-Marine” design engineered to withstand spray, salinity, vibration and marine conditions
Package Contents
- Fusion Apollo MS-RA670 Main Unit (Part No. 010-02138-00)
- Gasket for assembly and front cover
- Cables and connectors for power, speakers, audio input/output
- Installation documentation and quick start guide
Technical specifications
Audio performance and power
- Manageable audio zones: up to 3 zones
- Indicative peak power: approximately 280 W (depends on configuration)
- Amplifier type: Class D
- Operating voltage: 10.8 – 16 V DC
- DSP filters, bass boost, available audio profiles
Construction & Environment
- Front protection rating: IPX6 / IPX7
- Operating temperature range: 0°C – +50°C
- NMEA 2000 compatibility, PartyBus™ network support
- Approximate dimensions: Width approx. 157mm, height approx. 68mm, depth approx. 123mm
Items in this series — Stereo Serie Apollo FUSION
← scroll to see all specifications →
| Item | Description | Codice FUSION | Modello | V | Potenza W - RMS | Potenza W - MAX | Display | Ingresso ausiliario | Sorgente USB | DAB | Grado IP | misure mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 29.850.03 | Apollo SRX400 | 010-01983-00 | SRX400 | 12 | 2x43 | 2x70 | LCD a colori 2,7" | No | No | No | IPX6 / IPX7 | 70 x 110 x 122 | |
| 29.850.05 | Apollo MS-RA670 | 010-02138-00 | MS-RA670 | 12 | 4x43 | 4x70 | LCD a colori 2,7" | 1 RCA | Si | No | IPX6 / IPX7 | 68 x 157 x 123 | |
| 29.850.08 | Apollo MS-RA800 | 010-02937-01 | MS-RA800 | 12 | 4x40 | 4x80 | Touchscreen LCD a colori 4,3" | 2 RCA | Si | Si | IPX6 / IPX7 | 82 x 192 x 119,4 | |
| 29.850.14 | Apollo MS-WB675 | 010-02346-50 | MS-WB675 | 12 | 4x43 | 4x70 | No | 2 RCA | Si | No | IPX2 | 130 x 130 x 56 |
Apollo SRX400
- Codice FUSION
- 010-01983-00
- Modello
- SRX400
- V
- 12
- Potenza W - RMS
- 2x43
- Potenza W - MAX
- 2x70
- Display
- LCD a colori 2,7"
- Ingresso ausiliario
- No
- Sorgente USB
- No
- DAB
- No
- Grado IP
- IPX6 / IPX7
- misure mm
- 70 x 110 x 122
Apollo MS-RA670
- Codice FUSION
- 010-02138-00
- Modello
- MS-RA670
- V
- 12
- Potenza W - RMS
- 4x43
- Potenza W - MAX
- 4x70
- Display
- LCD a colori 2,7"
- Ingresso ausiliario
- 1 RCA
- Sorgente USB
- Si
- DAB
- No
- Grado IP
- IPX6 / IPX7
- misure mm
- 68 x 157 x 123
Apollo MS-RA800
- Codice FUSION
- 010-02937-01
- Modello
- MS-RA800
- V
- 12
- Potenza W - RMS
- 4x40
- Potenza W - MAX
- 4x80
- Display
- Touchscreen LCD a colori 4,3"
- Ingresso ausiliario
- 2 RCA
- Sorgente USB
- Si
- DAB
- Si
- Grado IP
- IPX6 / IPX7
- misure mm
- 82 x 192 x 119,4
Apollo MS-WB675
- Codice FUSION
- 010-02346-50
- Modello
- MS-WB675
- V
- 12
- Potenza W - RMS
- 4x43
- Potenza W - MAX
- 4x70
- Display
- No
- Ingresso ausiliario
- 2 RCA
- Sorgente USB
- Si
- DAB
- No
- Grado IP
- IPX2
- misure mm
- 130 x 130 x 56
