Quick Chain Counter Pushbutton with LCD Display FNCHC1103000A00

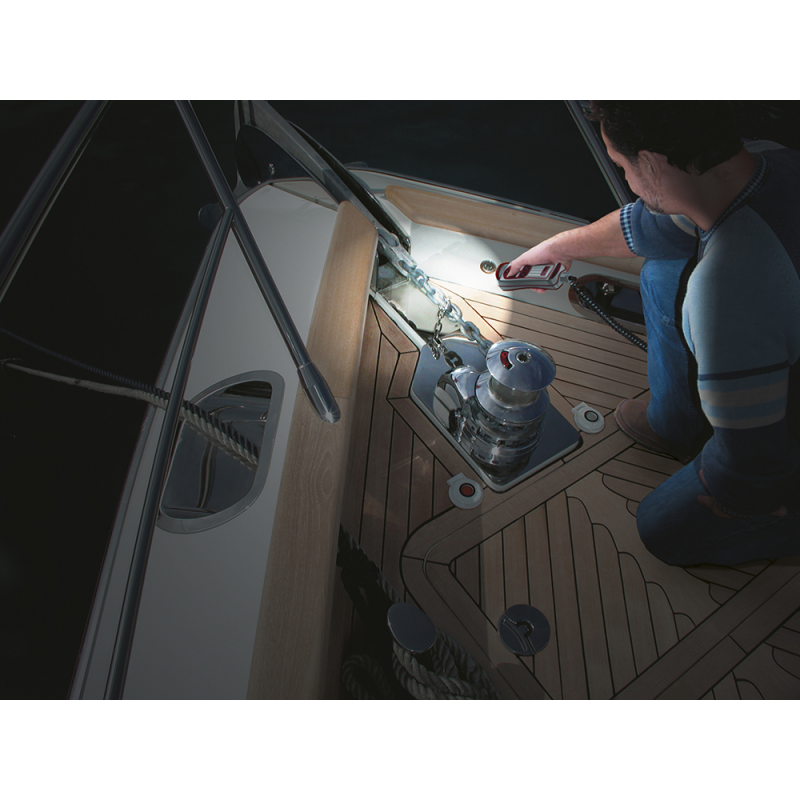

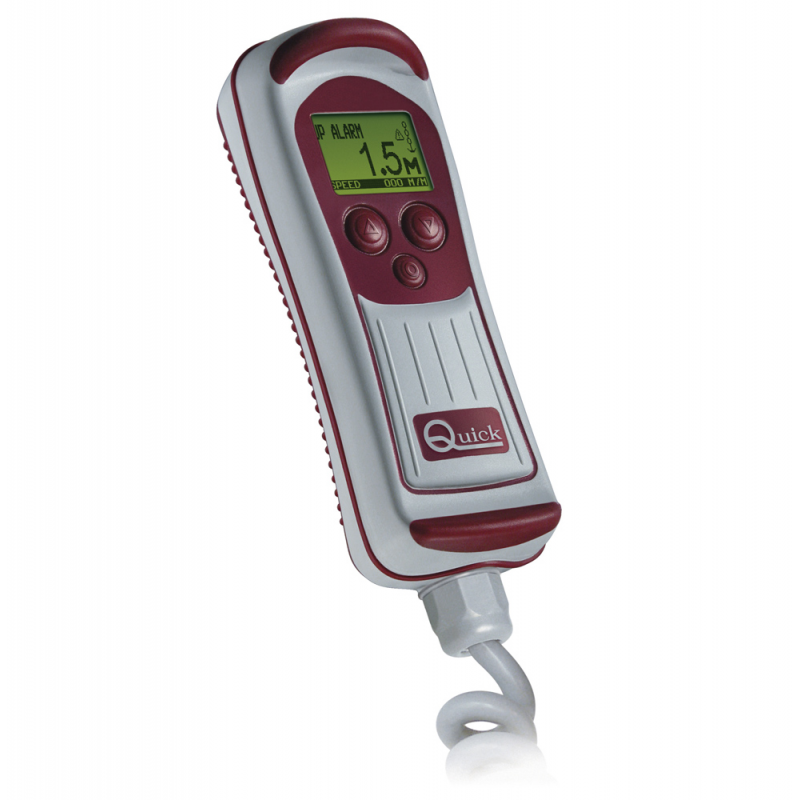

CHAIN COUNTER CONTROL PANEL WITH LCD DISPLAY. The Quick chain counter control panel with LCD display gives complete control of the windlass and the deployed chain from a single panel: the backlit graphic display shows the chain speed, the meters or feet deployed, and the supply voltage, while the integrated LED flashlight helps working at the bow even in the dark. The indications appear in 5 languages, with an integrated clock and calendar.The automatic lowering function lowers the chain by itself to the set depth, the raising alarm signals when the anchor is about to reach the chain locker, and the button lock prevents accidental operation. It also manages towing, not just anchoring, and communicates via CAN BUS interface with the rest of the onboard electrical system.IP67 waterproof, complete with depth sensor.Technical features:- Backlit graphic LCD display, 5 languages- Integrated LED flashlight- Automatic lowering function, raising alarm, button lock- Anchor release management with automatic free fall, also usable for towing- Display of chain speed, meters/feet deployed, supply voltage- Clock and calendar- CAN BUS interface- IP67 protection rating- 12/24V power supply- Dimensions mm. 165 x 62 x 50, weight 850 g- Complete with depth sensor
