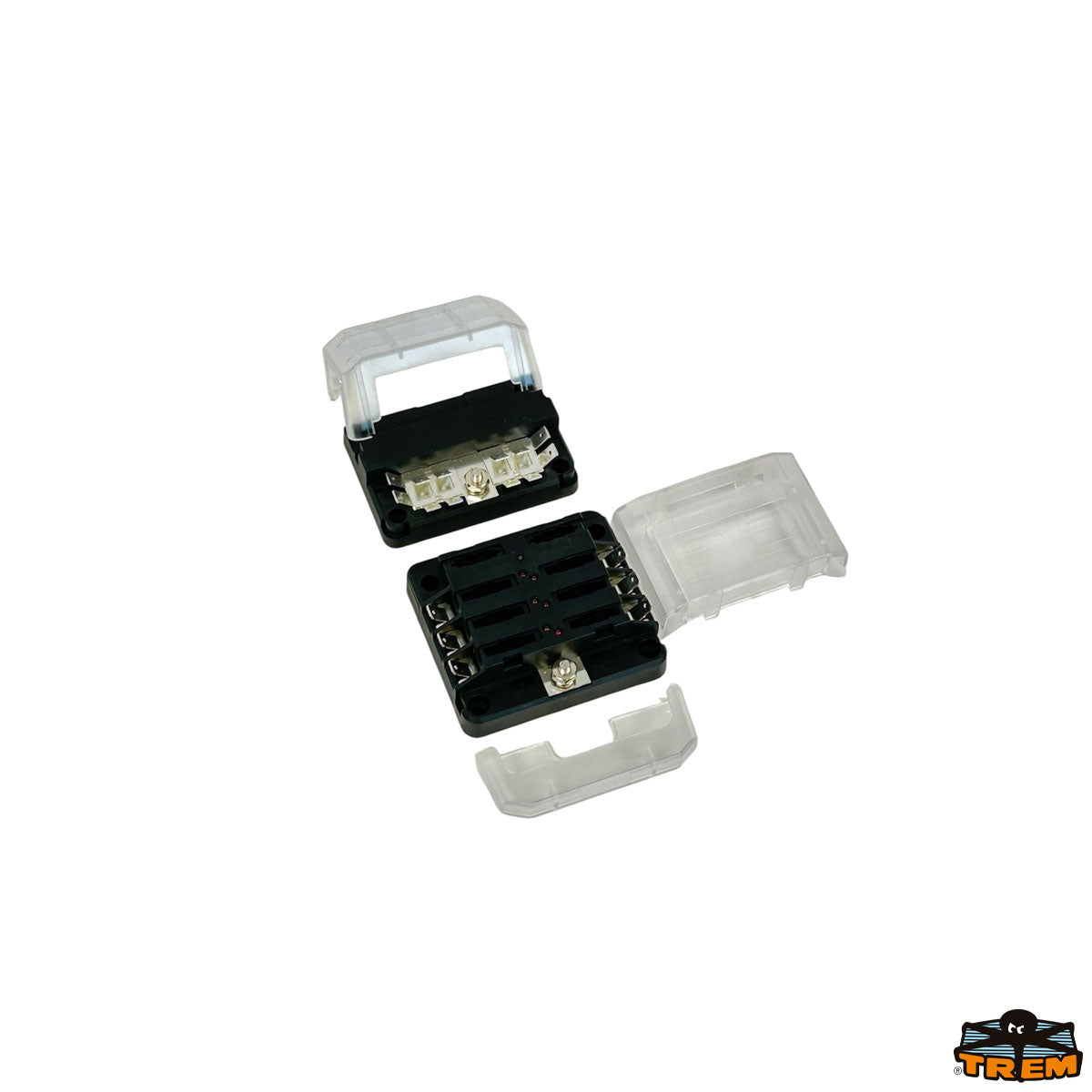

Trem Modular fuse boxes
Accepts standard blade fuses (ATP - ATO - ATC). Complete with control LEDs on each fuse. Voltage 12/24 V. Max cumulative load 100 A. Max single fuse load 20 A. Adhesive label kit with various labels included in the package. Using base modules 1 and 2, it is possible to create the illustrated combinations and many more.
| Code | Model | Dimensions mm | Type | Fuse holders | Contact type | Max voltage |
|---|---|---|---|---|---|---|
| L0606086 | 1 | 86x78x41 | 6 position fuse box | 6 | Faston | 32V |
| L0606186 | 1 | 86x78x41 | 6 position fuse box | 6 | Screw | 32V |
| L0612086 | 2 | 86x57x41 | 12 position negative bus bar | - | Faston | 32V |
| L0612186 | 2 | 86x57x41 | 12 position negative bus bar | - | Screw | 32V |
