Al-ko | SKU:
35_1224743
AL-KO AK7 square joint diameter 60 mm
€27,99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
AL-KO AK7 square joint diameter 60 mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Need help? Contact us
Need help? Contact us
Delivery and Shipping
Delivery and Shipping
We ship within 24-72 business hours, depending on the product. We use national and international couriers. Express insured shipping.
AL-KO AK7 square joint diameter 60 mm
€27,99
Unit price
/
Unavailable

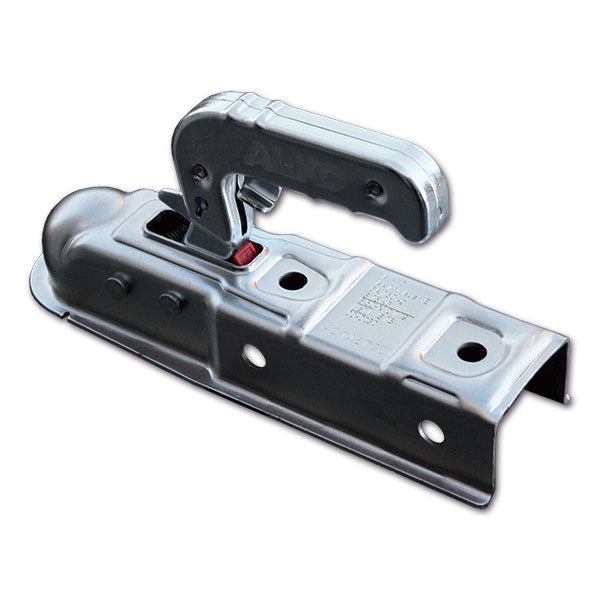

The AL-KO AK7 Square Coupling diameter 60 mm is a coupler for unbraked trailers (up to ~ 750 kg), designed by AL-KO with features that allow use on both round and square drawbars (round or square drawbars).
MAIN FEATURES:
- Type / version: AK7 E (square, version E)

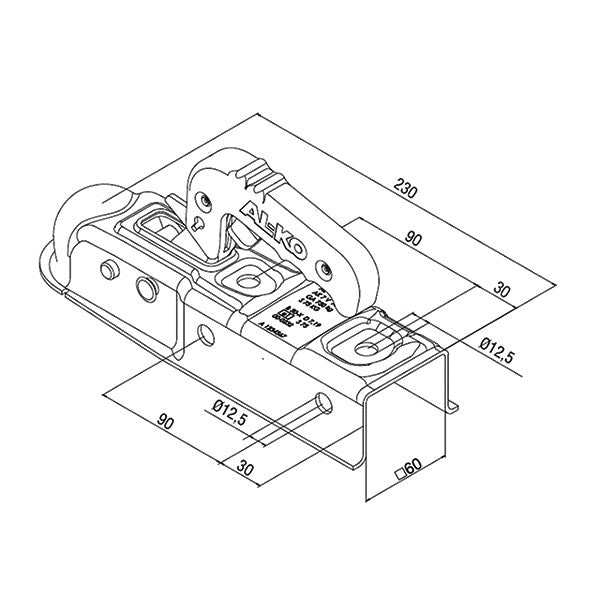

- Rudder section: 60 × 60 mm (square)
- Fixing holes: Horizontal/vertical cross holes, typically Ø 10.5 mm
- Distance between holes (CC): 80-90 mm
- Maximum trailer load: 750 kg
- Vertical load: 75 kg
- Fatigue force / D / Dc: 7.19 kN
- Recommended torque for bolt tightening: ~46 Nm
- Material / Finish: Zinc plated / galvanized steel
The handle, when attached to the trailer ball, moves horizontally and clicks, producing a "click" to confirm the connection.
The model supports both round and square diameter drawbars (round or square drawbars).
