Blocks and Pulleys

Blocks and sheaves are essential components in sailboat rigging. Both are used to manage and adjust the sails, making it possible to increase or decrease the force applied to a part of the boat and improve overall efficiency.

Blocks

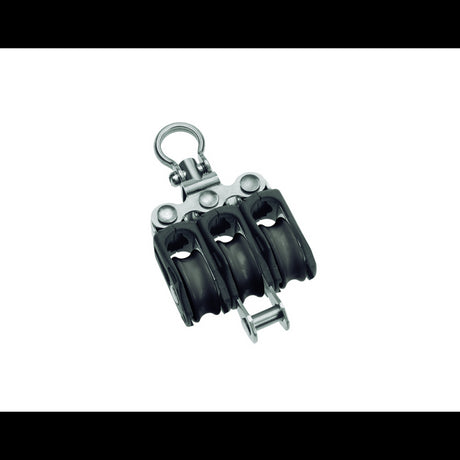

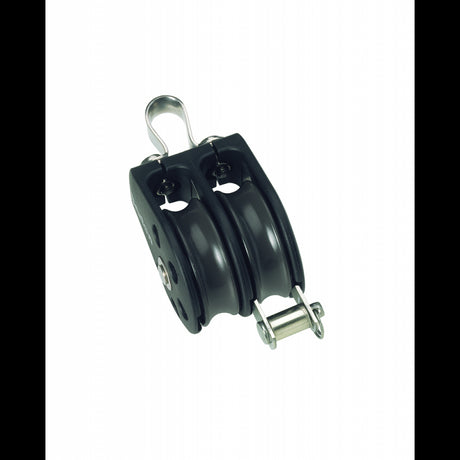

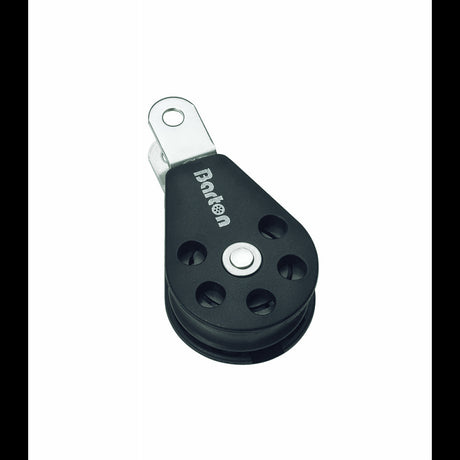

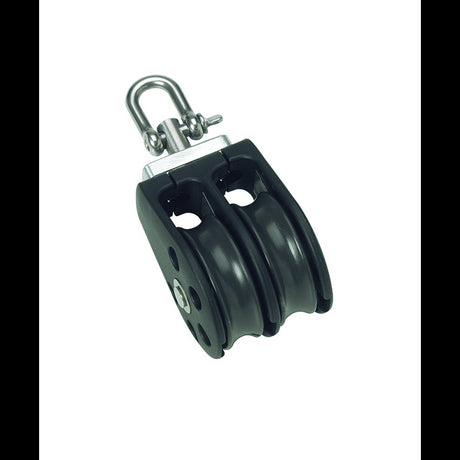

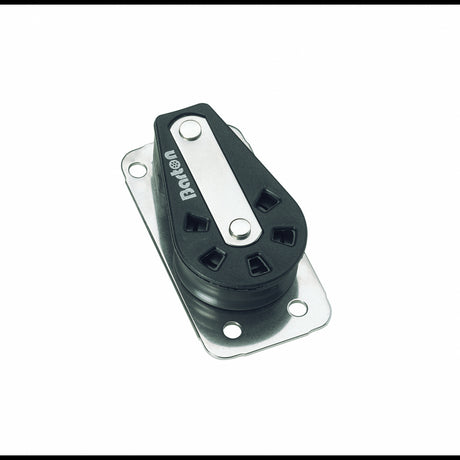

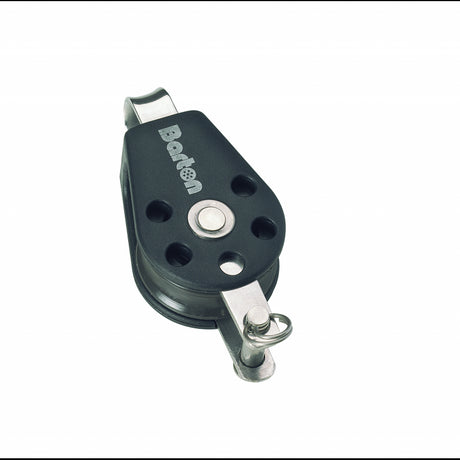

A block is a component that allows you to change the direction of tension on a line. It consists of a sheave or a series of sheaves mounted on a support. They are used to reduce the force required to raise or adjust a sail, such as trimming the mainsail, jib, or halyards. Blocks can have one or more sheaves and are available in various shapes and sizes, depending on the load requirement and the type of sail.

Function:

Change the pull angle : These allow you to change the direction of the rope so that the force is applied more efficiently.

Reduce the force required : Through the use of multiple pulleys (as in tackle systems), blocks can reduce the force required to raise or lower sails.

Pulleys

A sheave is a round component (usually made of metal or plastic) that allows the line to move along a curved surface, reducing friction. Sheaves are an essential part of block systems. Their primary function is to change the direction of the line or halyard, facilitating the movement of the sails.

Function:

Directing the rope : The pulley allows you to guide the rope along the desired path, both horizontally and vertically.

Reduce friction : By allowing the line to slide more easily, the pulley reduces friction, which could otherwise make it difficult to handle the sails.

Combined Use

In a sail system, blocks and sheaves work together to facilitate handling. For example, when raising a sail (like a mainsail), the halyards are connected to a system of blocks and sheaves that allow the line to be pulled with less effort. Similarly, sail control lines, like those for the jib, pass through blocks and sheaves for easier handling.

In conclusion, blocks and sheaves are essential for sail management, reducing sailor fatigue and improving the efficiency of onboard maneuvers.
