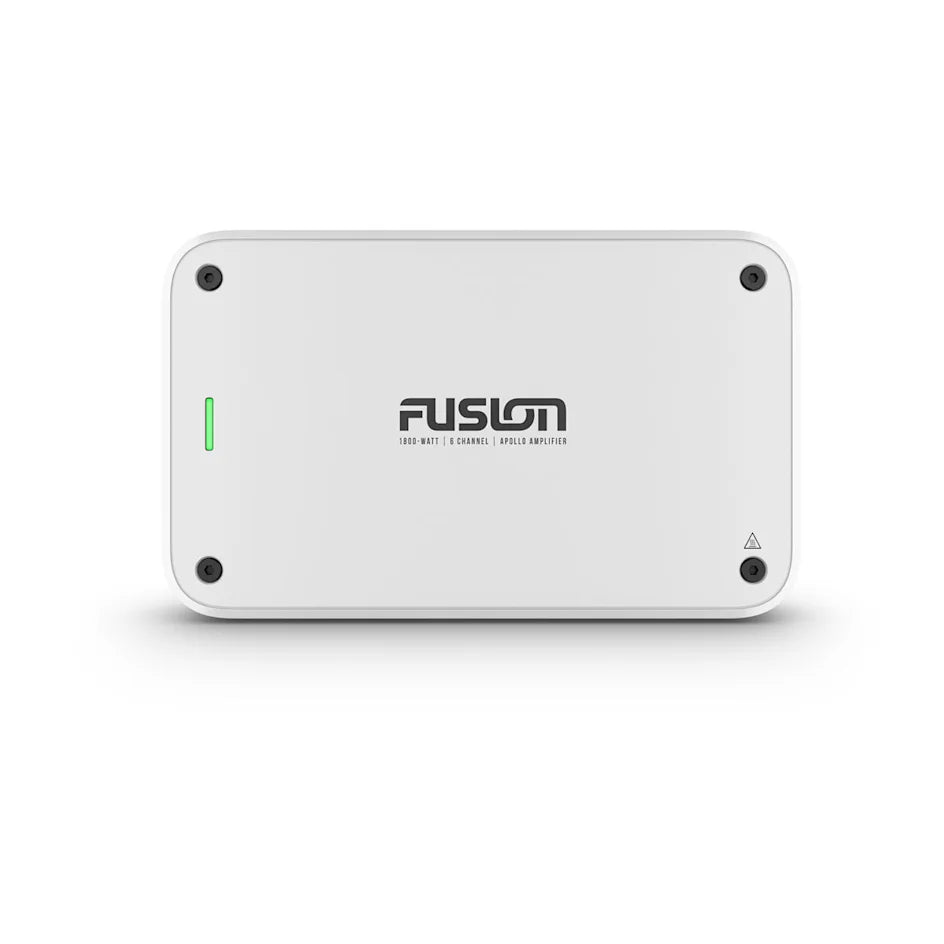

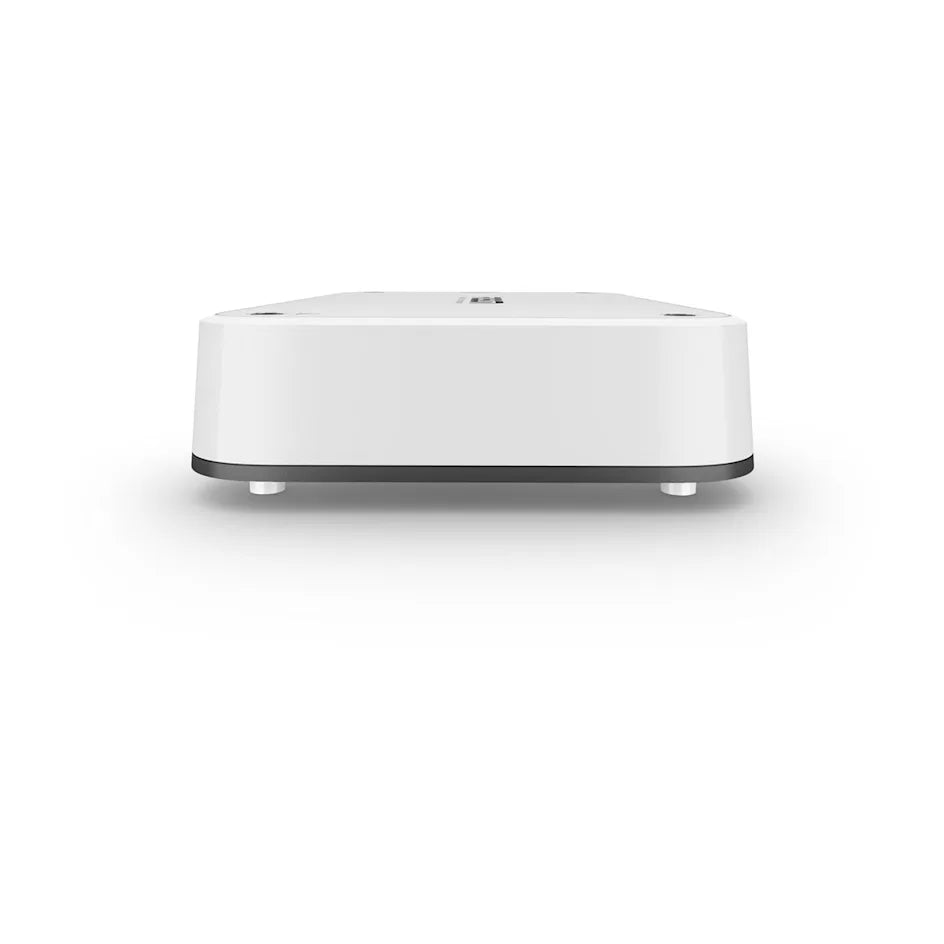

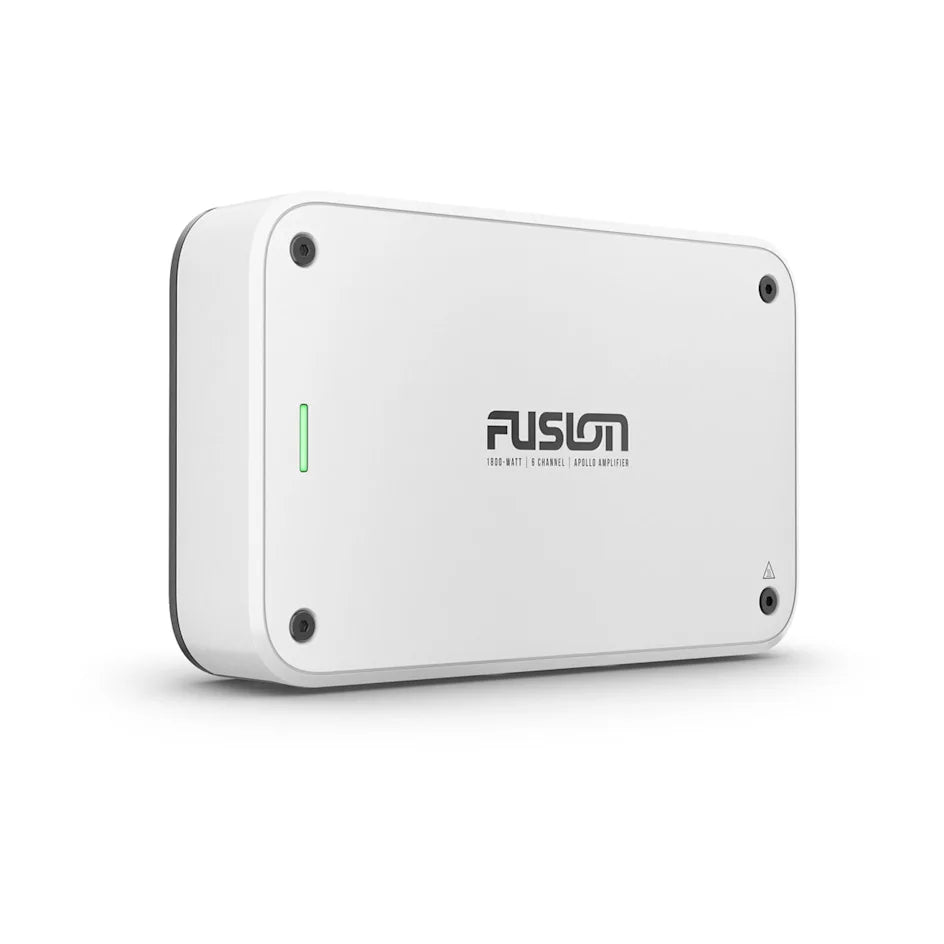

Garmin Fusion Apollo 6-Channel Marine Amplifier 150W RMS per Channel 010-02284-65

The Fusion Apollo 6-Channel Amplifier (part number 010-02284-65) is designed for those who want to take their onboard audio system to a professional level. With 150 W RMS per channel into 4 Ω and up to 290 W per channel into 2 Ω, it can power up to six pairs of speakers or speaker and subwoofer combinations. It includes a “High Power” mode for easy bridging, LED indicators to monitor voltage, short circuits and temperatures, dedicated protections (reverse voltage, over/under voltage, over temperature, short output) and a marine-grade design with saltpetre, vibration and UV resistance testing.

Main features

• 6-Channel Class D Marine Amplifier
• RMS power: 150 W per channel into 4 Ω (at 14.4 V, <1% THD)
• RMS power: 290 W per channel into 2 Ω (at 14.4 V, <1% THD)
• Total peak power: approximately 1800 W
• “High Power” mode for scaffolding and high-performance configurations
• Stability at 2 Ω (up to 2 speakers can be connected per channel)
• LED indicators for quick check of any electrical anomalies
• Built-in protections: reverse voltage, undervoltage, overtemperature, short circuit
• “True-Marine” design: conform-coated PCB, marine-resistant components

Advantages and benefits

1. High power for more ambitious onboard audio systems: perfect for yachts, pleasure boats with multiple audio zones or dedicated subwoofers
2. Easy installation thanks to the “High Power Mode” devices and the mounting brackets provided
3. High audio quality even at high volume: low distortion and low noise thanks to the dedicated design
4. Marine reliability: materials and protections designed to last, resisting salinity, vibration and harsh weather conditions
5. Configuration versatility: Six independent channels allow for multiple setups (speakers + subwoofer)

Package Contents

• Fusion Apollo 6-Channel Amplifier (Part No. 010-02284-65)
• Mounting brackets
• “High Power” mode adapters for bridging

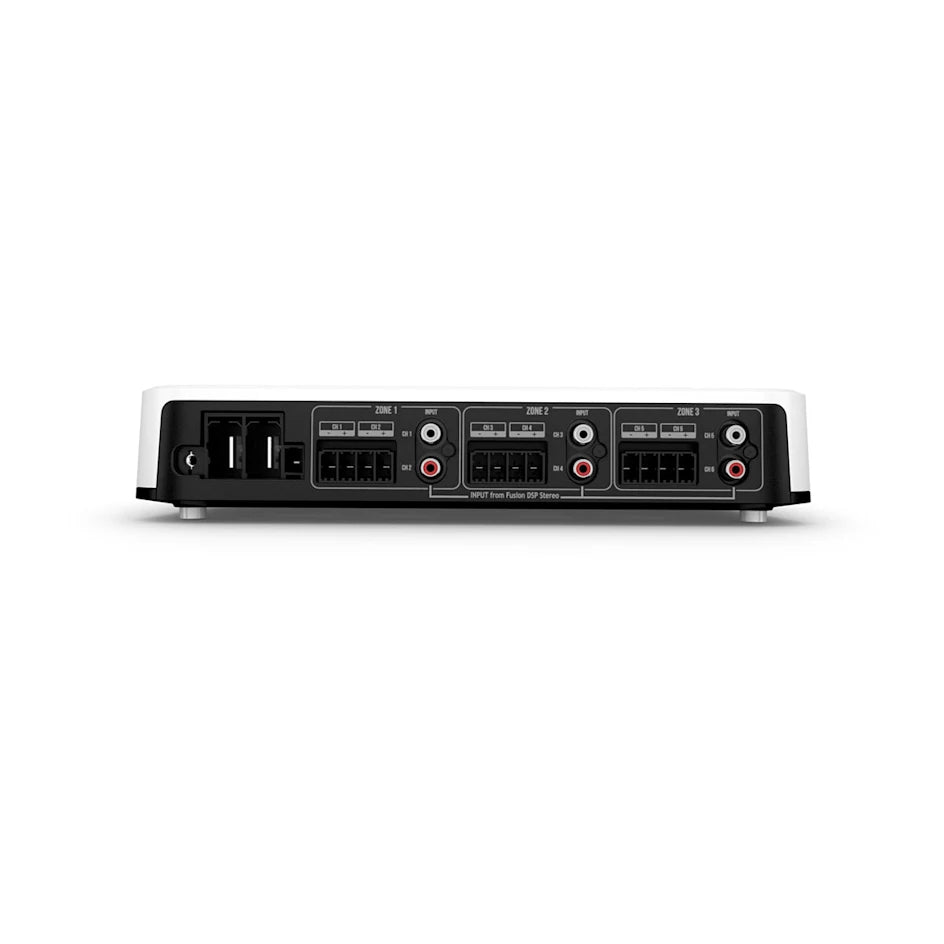

• Power connector / speaker terminals
• Fixing screw kit
• Installation manual and quick start guide

Technical specifications

Performance

• RMS Power 6 x 150W @ 14.4V, 4Ω, <1% THD
• RMS Power 6 x 290 W @ 14.4 V, 2 Ω, <1% THD
• Peak power: ~1800 W
• Input impedance: 22 kΩ
• Input sensitivity (RCA): ~1.6 V RMS

Construction and dimensions

• Dimensions without brackets: 297 × 180 × 45 mm (L × W × H)
• Dimensions with brackets: 297 × 180 × 50 mm
• Weight: ~2.7 kg
• Water/Dust Protection Class: IPX2

Food and consumption

• Operating voltage: 10.8V – 16V DC
• Standby consumption: < 5 mA @ 14.4 V
• Power consumption on without audio: < 1.32 A @ 14.4 V
• Recommended power fuse: 125A electronic fuse

Operating environment

• Operating temperature: 0 °C – +50 °C
• Protections: reverse voltage, input over/undervoltage, output short circuit, over temperature
