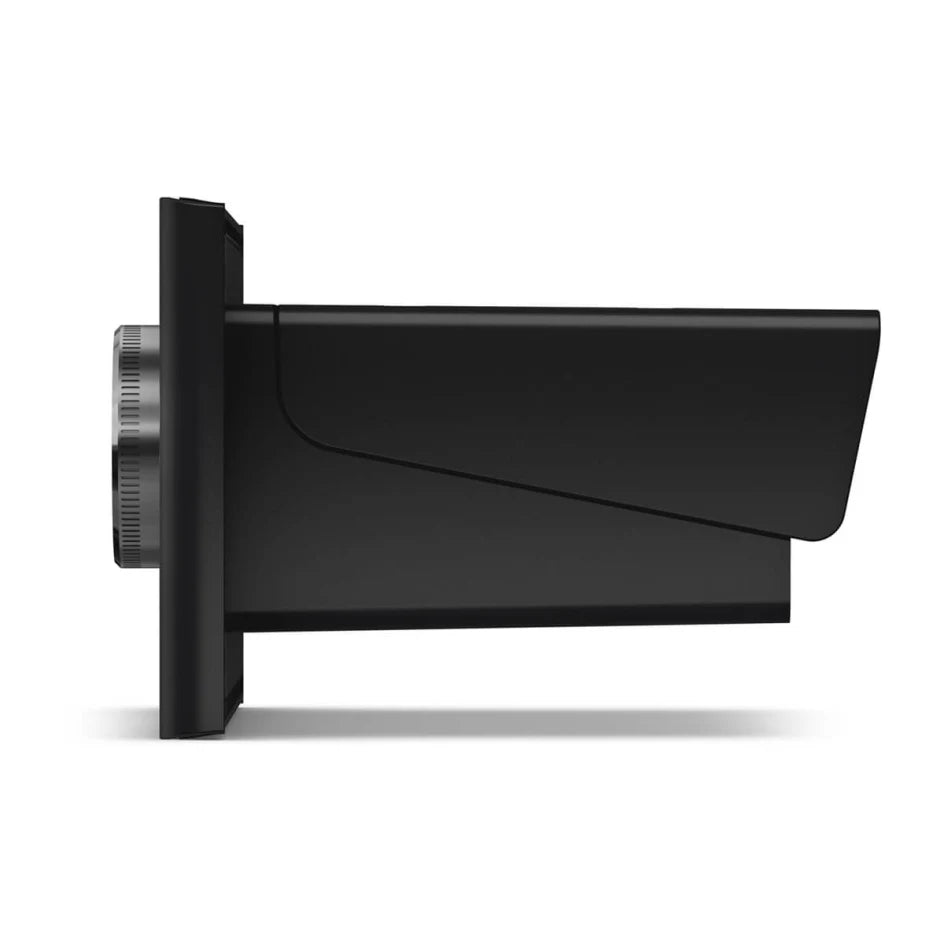

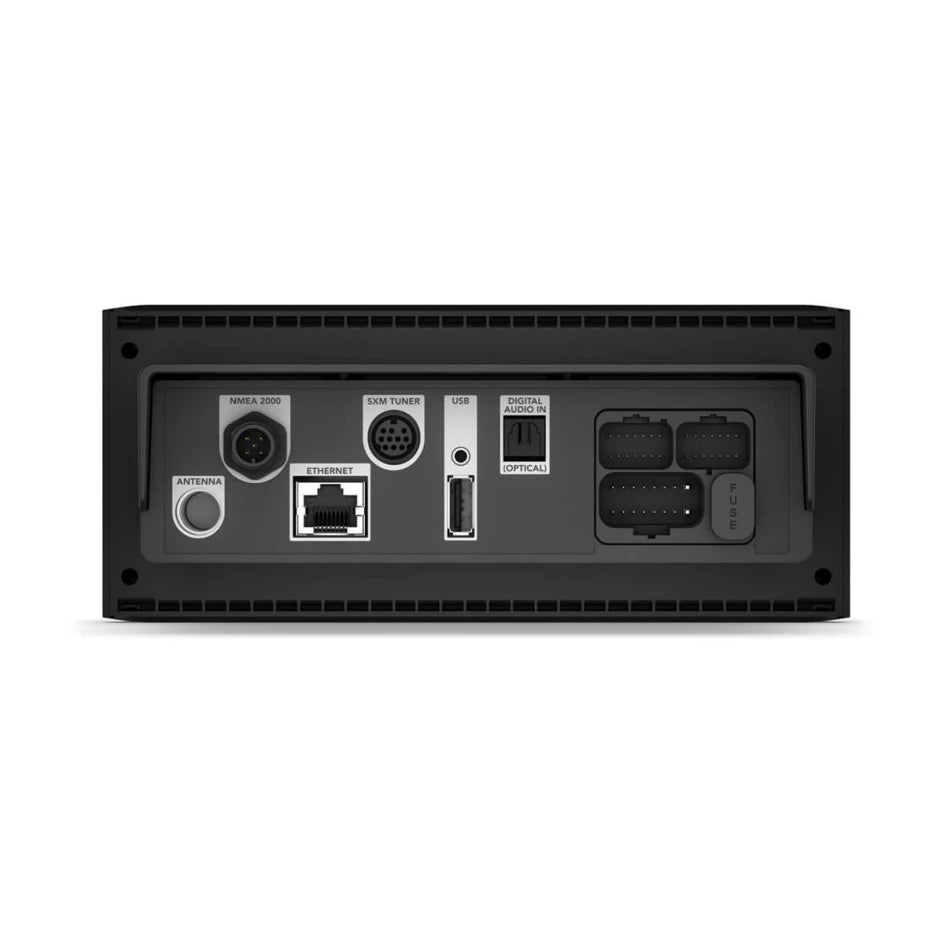

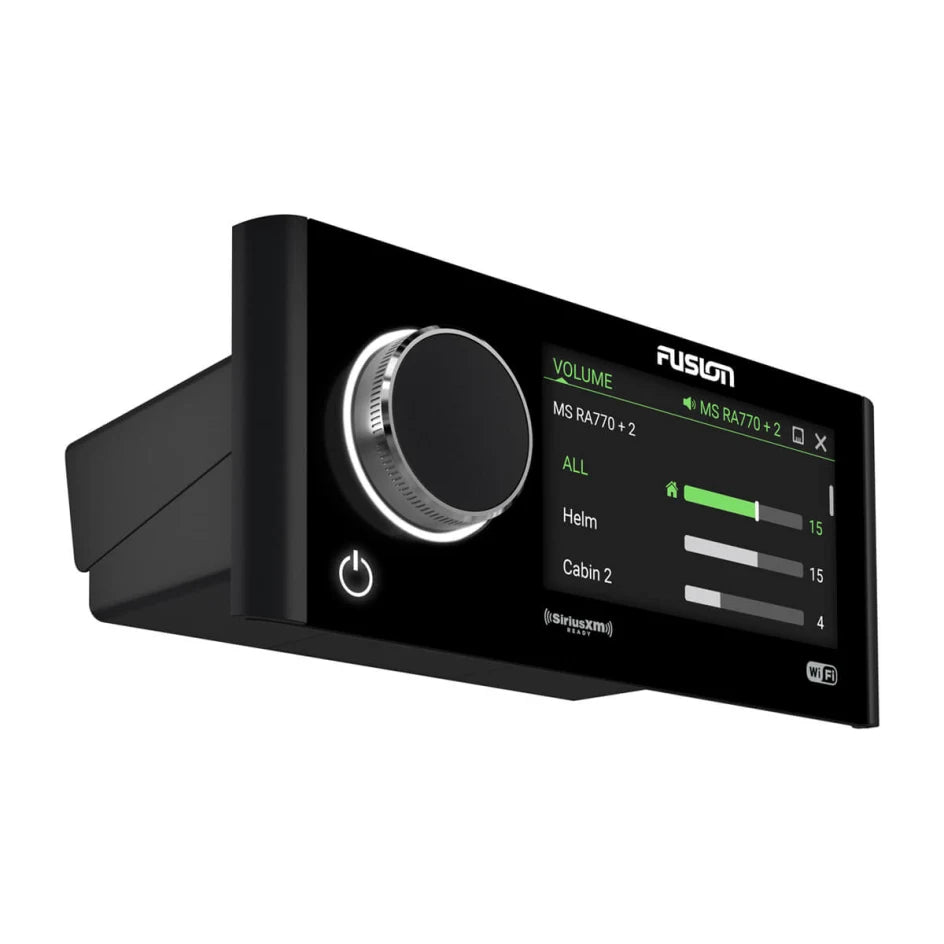

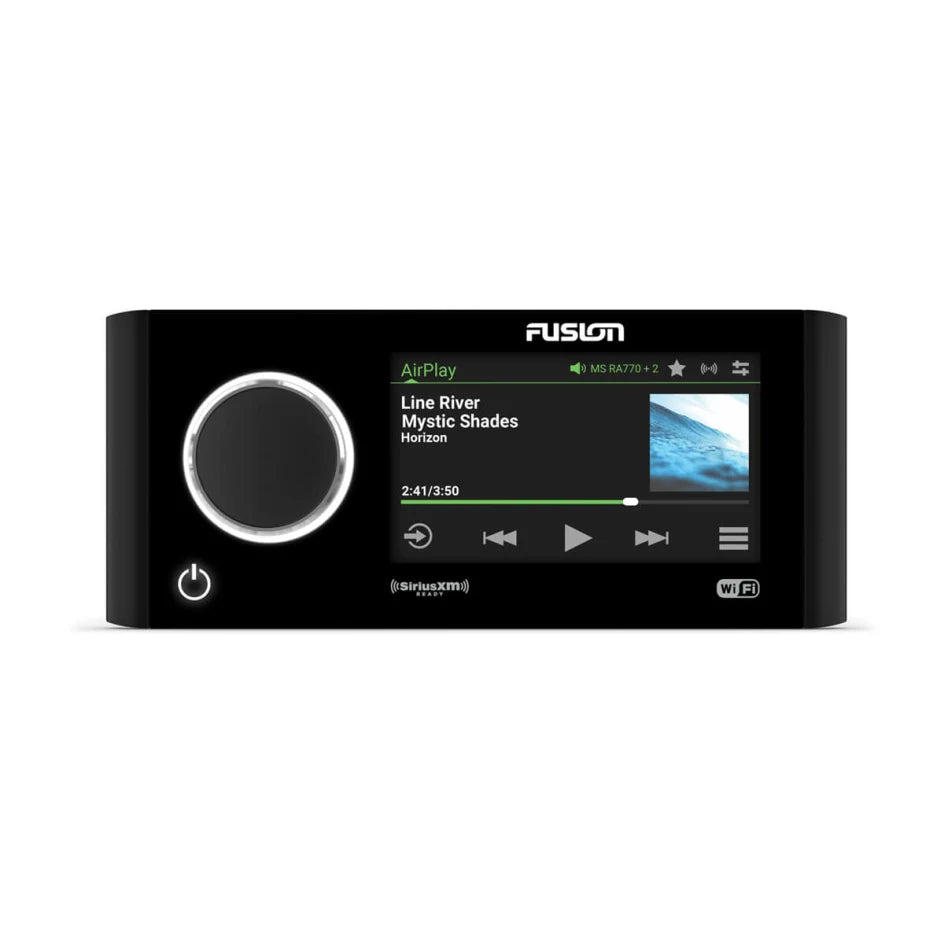

Garmin Fusion Apollo Marine Stereo Touchscreen Wi-Fi 010-01905-00

The Fusion Apollo MS-RA770 marine stereo represents a technological leap in marine audio entertainment. The 4.3" touchscreen front panel allows for intuitive and quick interaction with the audio system. Built-in Wi-Fi and Apple AirPlay 2 support make music streaming on board easy and seamless.
DSP (Digital Signal Processing) technology delivers sound optimized for the marine environment, allowing the creation of customized audio profiles and synchronization between multiple audio zones via the Multi-Zone™ function for up to 4 zones. The system is designed to withstand marine conditions, with an IPX6/IPX7-rated front panel and compatibility with the most advanced networking and audio control protocols.

Main features

• 4.3" color LCD touchscreen display
• Built-in Wi-Fi connectivity and Apple AirPlay 2 support
• DSP technology for high-performance audio
• Multi-Zone™ up to 4 independent audio zones
• Compatible with Bluetooth®, USB, AUX, UPnP, MTP, optical inputs
• IPX6/IPX7 certified front for resistance to splashes and marine conditions
• PartyBus™ audio networking for synchronization between multiple units
• Supports smartphone control, multifunction display, Garmin watch
• Power supply 10.8-16 V DC

Advantages and benefits

1. Modern and intuitive touchscreen interface: ease of use on the move on the boat
2. Seamless music streaming via Wi-Fi and AirPlay 2: higher quality than Bluetooth alone
3. Audio optimized for marine environments thanks to DSP: deep bass, clarity, managed volume
4. Management of multiple independent audio zones: each area of ​​the boat can have its own audio sub-system
5. Marine-grade ruggedness: Designed to withstand splashes, salt spray, vibrations and UV rays
6. Advanced integration: control from multifunction display, shared audio network, compatibility with on-board audio systems

Package Contents

• Fusion Apollo MS-RA770 Main Unit (Part No. 010-01905-00)
• Wiring and power connector
• Installation Manual and Quick Start Guide
• Mounting kit (screws/fasteners)

Technical specifications

Audio performance and power

• Power supply: 10.8 – 16 V DC
• Maximum current: about 15 A
• Pre-out outputs: line-out and subwoofer for each zone
• Number of manageable audio zones: up to 4
• Integrated technology: DSP, PartyBus™ network, Multi-Zone™, Fusion-Link™
• Supported sources: AM/FM, Bluetooth®, USB audio, AUX x2, digital optical input, UPnP, MTP, Apple AirPlay 2
• Front protection: IPX6 / IPX7

Construction and dimensions

• Front panel dimensions: approx. 192 mm × 82 mm × 20.4 mm front depth
• Body depth: variable depending on assembly
• Safe compass distance: ~150 mm

Materials & Operating Environment

• Water-resistant capacitive glass front
• Operating temperature: 0°C to +50°C
• Certification / Compatibility: Marine audio protocols, NMEA 2000 networking, remote control
