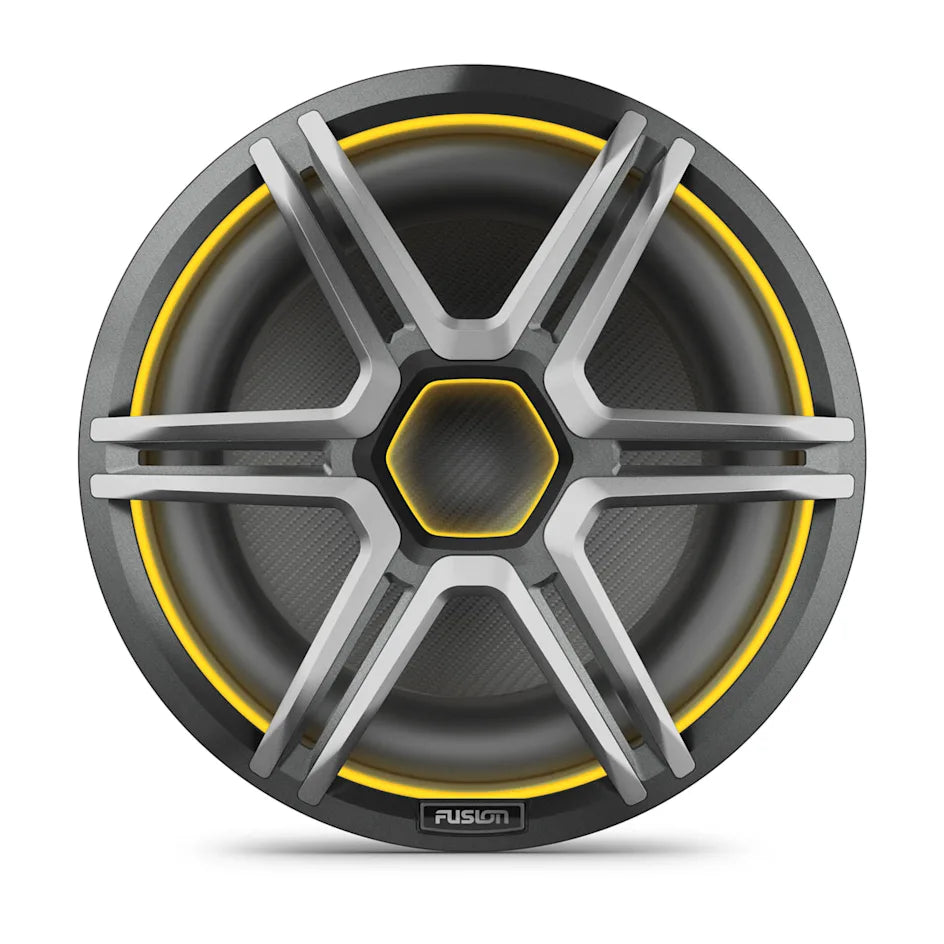

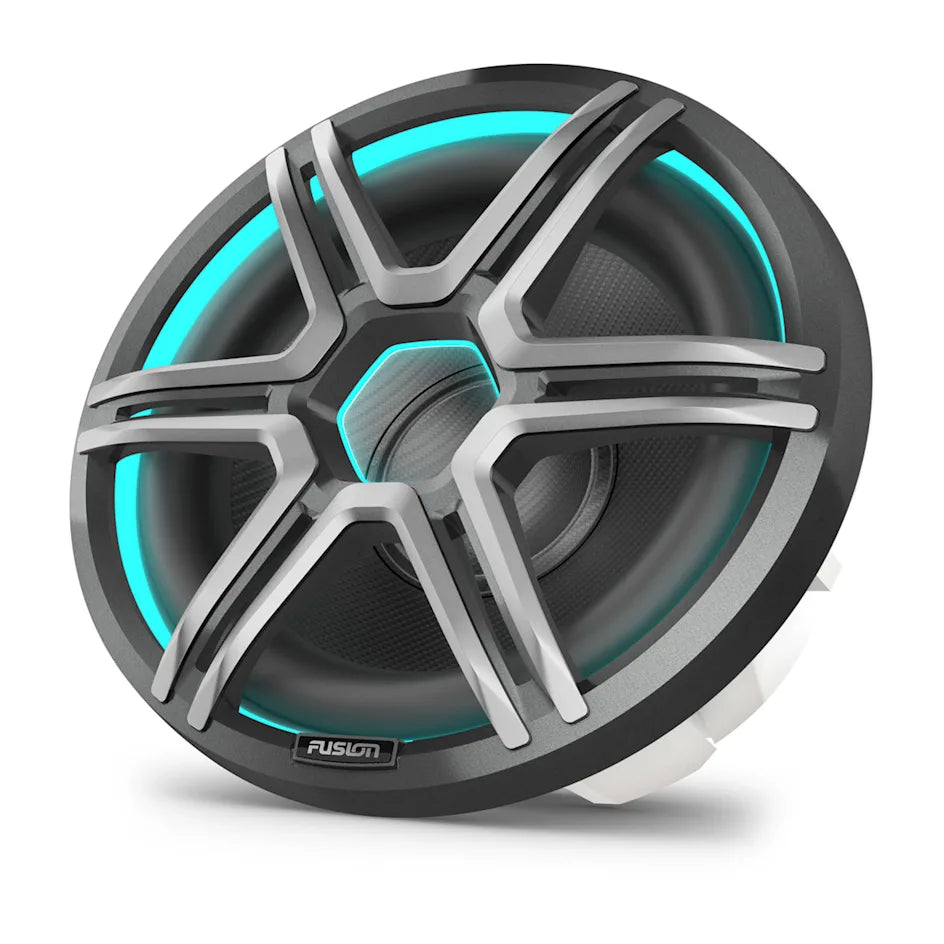

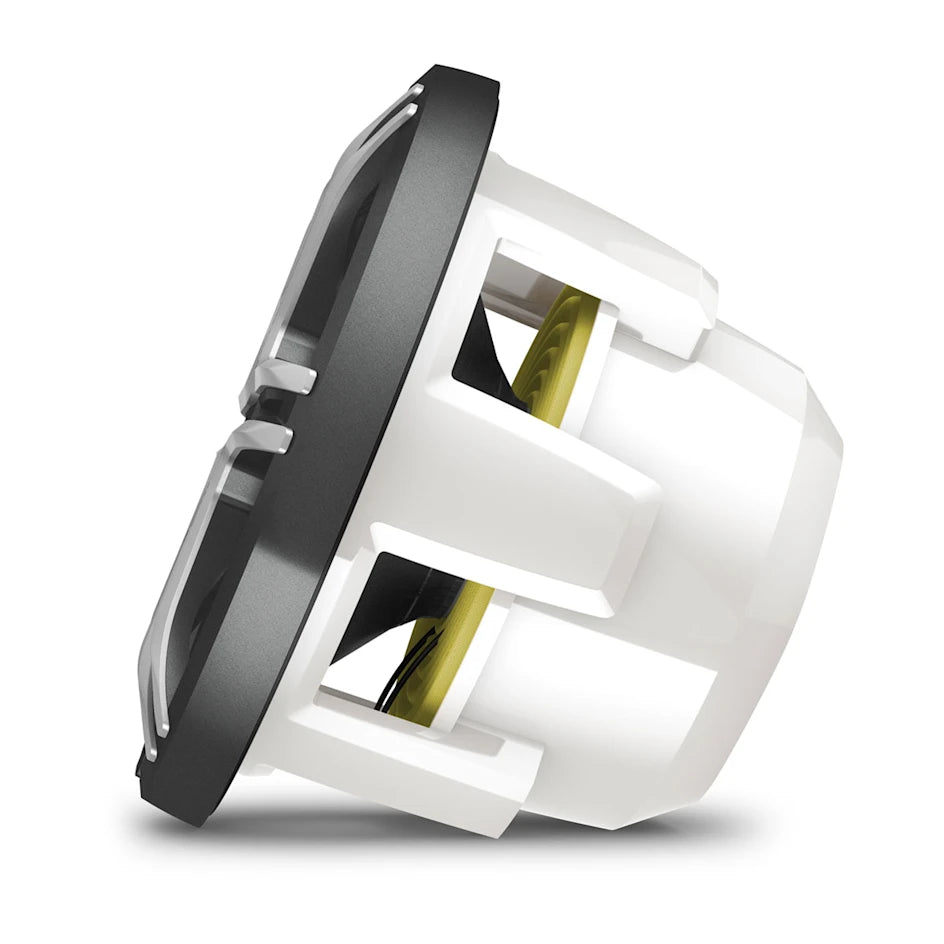

Garmin Fusion Apollo 12" LED Marine Subwoofer, Sport Grille, Gray 010-02918-53

Fusion Apollo Series 12" marine subwoofer with gray sport grille, dual-tone CRGBW LED lighting, 700W RMS power, IP66/IP67 certified construction for demanding marine environments.

The Fusion Apollo 12" model with gray sport grille is designed for the most demanding marine environments, offering immersive bass, high-fidelity sound, and a high-performance marine-grade design. Integrated five-color LED lighting allows you to create the desired ambiance on board, while the gray sport grille lends a sleek, modern aesthetic. Thanks to the IP66/IP67 certified construction, it is resistant to splashes, salt water, and vibrations typical of boats. Ideal for those who want power, style, and durability in a single audio component.

Main features

12" Marine Subwoofer with Gray Sport Grille
RMS power 700 W, peak up to approximately 1400 W
Frequency response 20 Hz – 2 kHz
Sensitivity 86 dB (1 W/1 m)
Impedance 4 ohms
Five-color CRGBW LED lighting
IP66/IP67 certified marine structure
Waterproof connectors for audio and LEDs
Sporty design with interchangeable grille

Advantages and benefits

Powerful and defined bass even at high volumes in marine environments
Customizable visual effect thanks to the integrated multicolor LEDs
Refined aesthetics with grey sports grille that easily matches many trims
High reliability thanks to IP66/IP67 certification and components designed for nautical use
Simplified installation thanks to dedicated connectors and compatibility with boat audio systems

Package Contents

Fusion Apollo 12" Subwoofer with Gray Sport Grille
Water-resistant 2-way audio cable
LED cable with 6-way waterproof connector
Mounting screws
User manual and documentation

Technical specifications

Performance

Size: 12″
RMS power: 700 W
Peak power: approximately 1400 W
Frequency response: 20 Hz – 2 kHz
Sensitivity: 86 dB
Impedance: 4 Ω

Construction & materials

Degree of protection: IP66 / IP67
Polypropylene cone with rubber suspension
Voice coil diameter: 4″

Mounting dimensions

Outer diameter: approx. 356 mm
Depth: approx. 248.2 mm
Mounting hole diameter: approx. 301mm
Mounting depth: approx. 198 mm

LED & Power

LED Type: CRGBW (5 colors)
LED supply voltage: 10.8 – 16 V DC
LED current at 14.4V DC: 0.27A per color (max 0.54A with compatible controller)
Operating temperature: 0°C to 50°C

Further details

Compass safety distance: 580 cm
Audio connector: 2-way (2-pin) or 6.3mm male spades
LED Connector: 6-way (6-pin) water resistant
