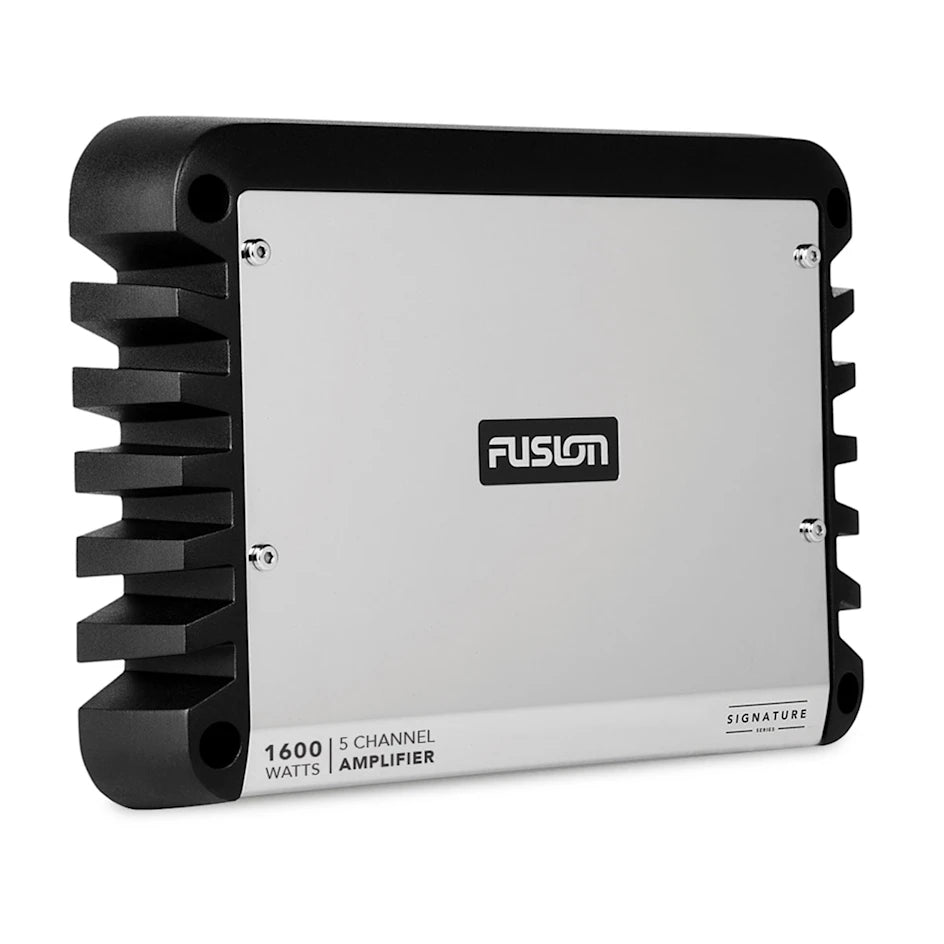

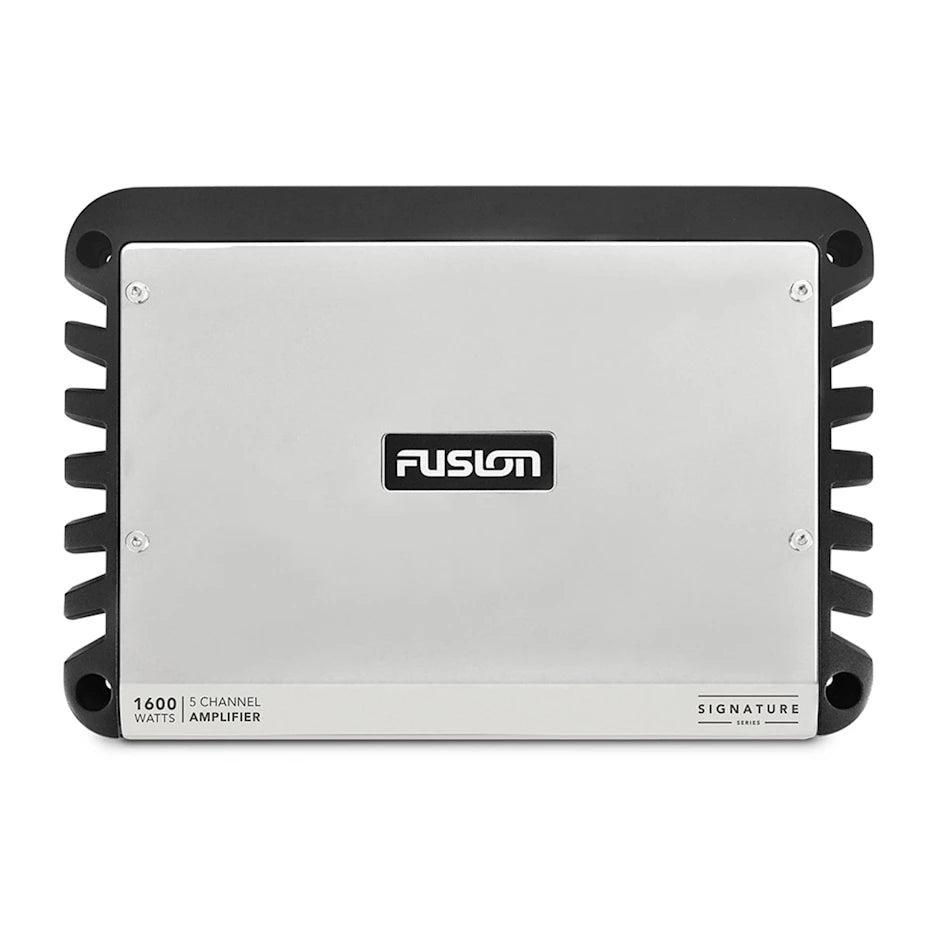

Garmin Fusion Signature Series 5-Channel 1600W Marine Amplifier 010-01968-00

The Fusion Signature Series 5-Channel Amplifier (part number 010-01968-00) is a benchmark for marine audio entertainment. With high power (up to 1600W peak) and the efficiency of Class D technology, it can power high-performance speakers and subwoofers while reducing the impact on your boat's battery.
Built for marine environments, it features a conform-coated circuit board, an aluminum alloy heatsink, and a chassis designed to resist corrosion, vibration, saltwater, and UV rays. Installation is flexible and allows for multiple configurations: for example, four speakers plus a subwoofer, or two speakers per channel at 2 Ω, or channels bridged at 4 Ω.
Perfect for those who want powerful, dynamic and reliable sound on board.

Main features

• 5-Channel Class D Marine Amplifier.
• Peak power: 1600 W (for 5-channel configuration)
• Typical configuration: 80 W RMS × 4 channels + 250 W RMS × 1 channel @ 4 Ω, 1% THD
• 2 Ω Stability: 130W RMS × 4 + 330W RMS × 1 channel @ 2 Ω, 1% THD
• Selectable high-pass/low-pass filters, variable bass boost
• True-Marine Construction: Conform-coated PCB, alloy heatsink, tested for marine environments
• Typical power supply: 10.8 – 16 V DC for 12 V versions
• Warranty: 3 years (for Signature Series)

Advantages and benefits

1. High power allows for a full-size audio system with multiple zones and subwoofers, ideal for pleasure boats, yachts or premium marine environments
2. Class D technology efficiency: lower consumption, less stress on the vessel's electrical system
3. Versatile installation: supports a wide range of sound configurations (speakers + subwoofer + scaffolding)
4. Reliability in marine environments: materials and construction designed to withstand splashes, salinity, vibrations, humidity
5. Easy tuning with filter, bass boost, and bridging controls: allows you to adapt the audio to the specific environment of your boat

Package Contents

• Fusion Signature Series 5-Channel Amplifier (Part No. 010-01968-00)
• Mounting accessories (self-tapping screws, hex keys)
• User manual / installation guide (including wiring and configuration details)

Technical specifications

Power and performance

• Total peak: 1600 W (5-channel model)
• RMS @ 4 Ω: 80 W × 4 + 250 W × 1 (5-channel)
• RMS @ 2 Ω: 130 W × 4 + 330 W × 1 (5-channel)
• Frequency response: 10 Hz – 50 kHz (4/5-channel)

Construction & Dimensions

• Dimensions (4/5-channel model): Approx. 300mm × 210mm × 50mm (W × D × H)
• “True-Marine” marine protection class (resistance to saltpetre, vibrations, humidity)

Food & Consumption

• Operating voltage: 10.8 – 16 V DC for 12 V versions
• Standby consumption: < 1 mA @ 14.4 V DC (4/5/6/8 channel models)

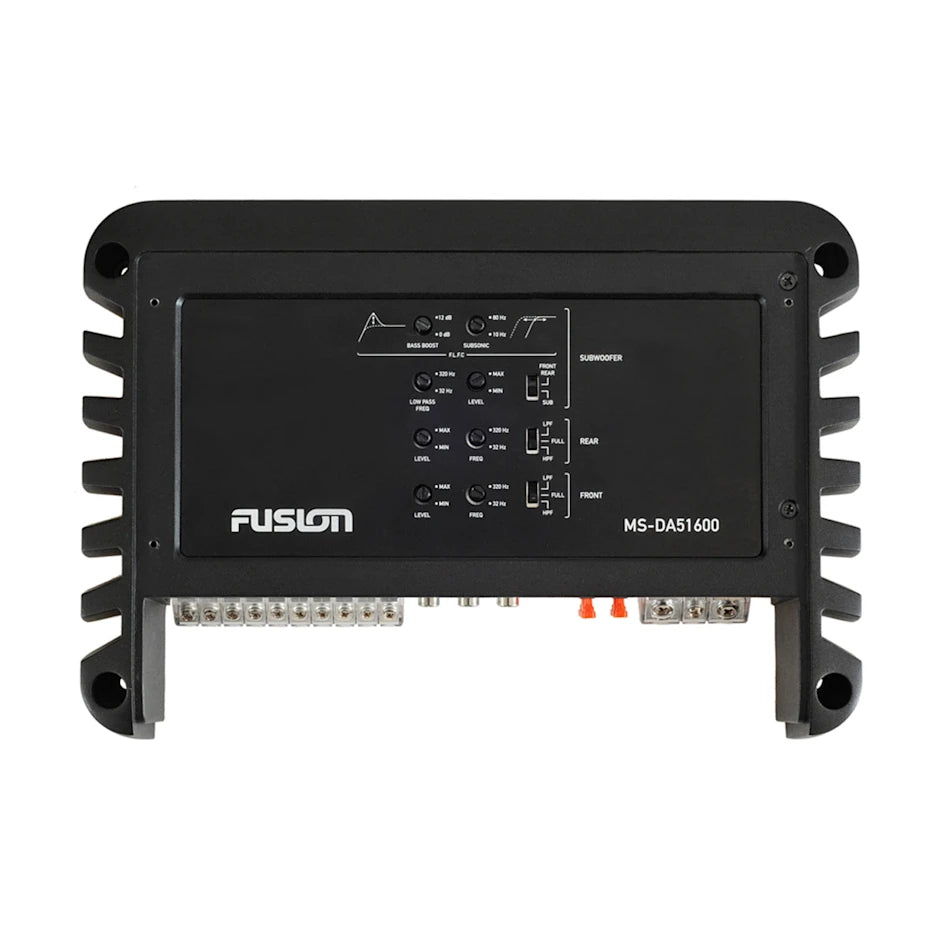

Installation & tuning

• Selectable HPF/LPF filters
• Variable bass boost up to +12 dB (subwoofer zone)

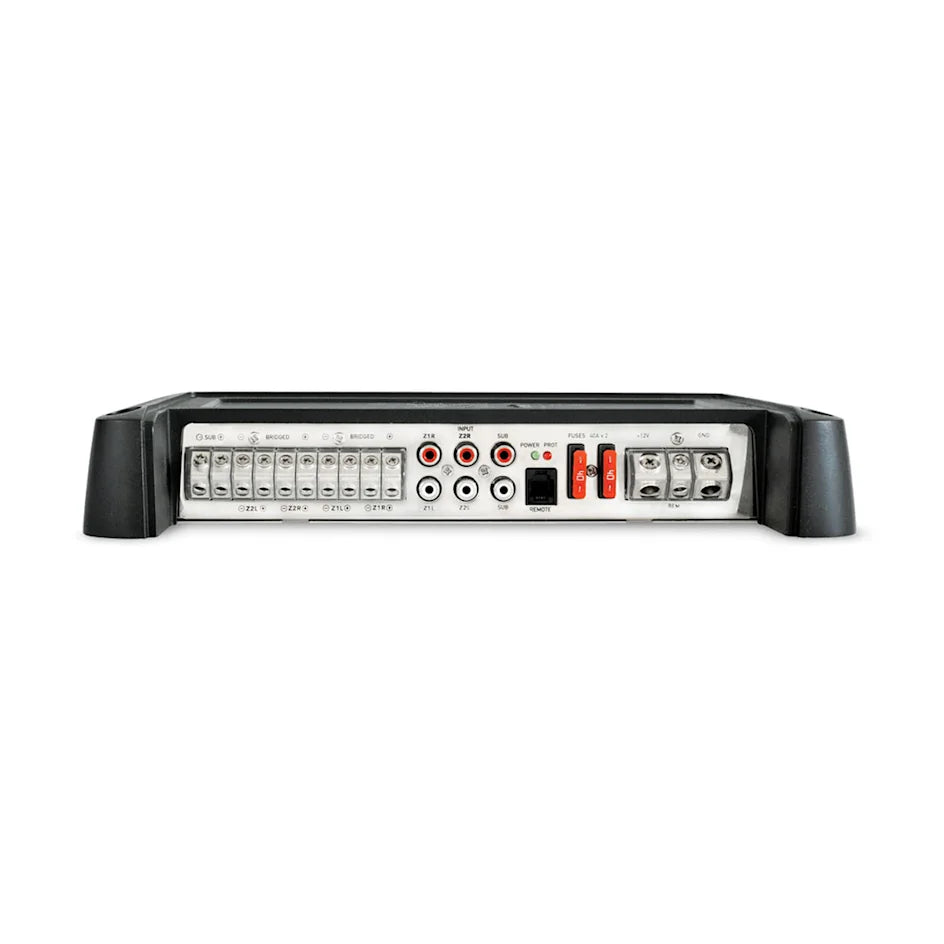

• Ability to connect two speakers per channel at 2 Ω or bridge two channels at 4 Ω for more power
