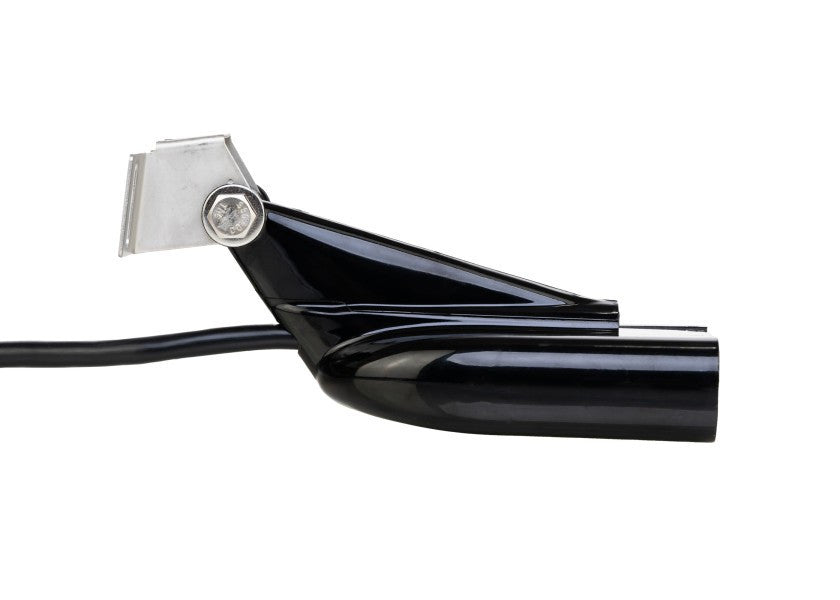

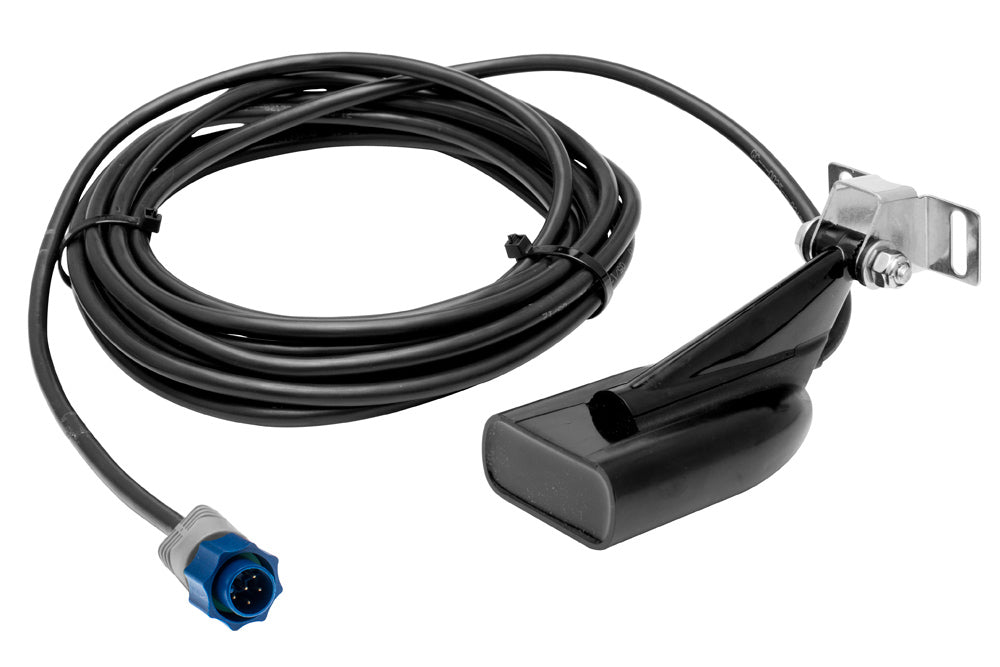

Lowrance 7-Pin 83/200 Khz Transom Transducer

The Lowrance 83/200 kHz transom mount transducer with 7-pin connector is a reliable and efficient solution for those who want to obtain precise sonar data while cruising or fishing.

Designed for transom installation, this transducer offers excellent performance in both shallow and medium depth waters (up to 300 m).

It operates on two frequencies – 83 kHz for wider coverage and 200 kHz for greater definition – allowing for a detailed view of the bottom and fish.

It is compatible with many Lowrance fishfinders and chartplotters equipped with a 7-PIN connector, ensuring immediate and hassle-free integration.

The transducer's rugged, hydrodynamic design ensures resistance to marine stresses and stable readings even at high speeds. It includes a stainless steel mounting bracket and screws for quick and secure installation on the transom of your vessel.

MAIN FEATURES:

• Operating frequencies: 83/200 kHz

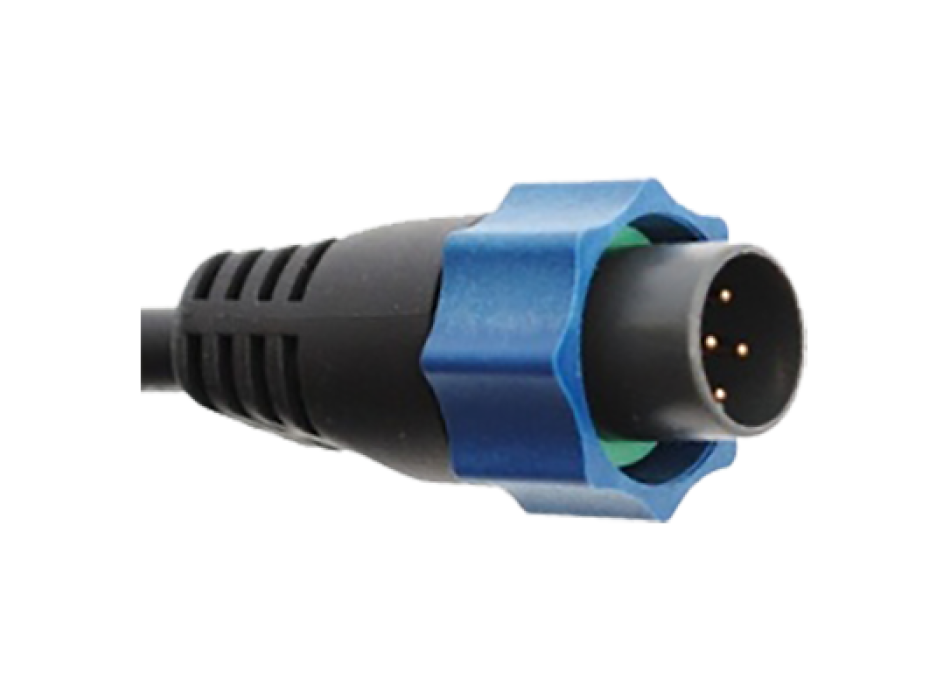

• Connector: 7 PIN
• Installation: transom mounted
• Beam width : 60° (83 kHz), 20° (200 kHz)
• Saltwater resistant material
• Integrated cable of approximately 6 metres (extendable by another 6 m with the accessory 5605250)
• Depth and temperature sensors included
• Compatible with Lowrance/Simrad/BG instruments with a 7-pin blue connector such as Hook (not Hook2), Elite HDI/Chirp, HDS GEN1-2-3, GEN2 Touch, HDS Carbon, NSSEVO, x91 (200khz only). Can be connected to instruments with a 9-pin black connector such as Elite-ti, TI2, FS, GO, NSSEVO3, Vulcan, HDS LIVE via the adapter cable: 5605252
• DOES NOT ALLOW THE USE OF STRUCTURESCAN and SIDESCAN.
