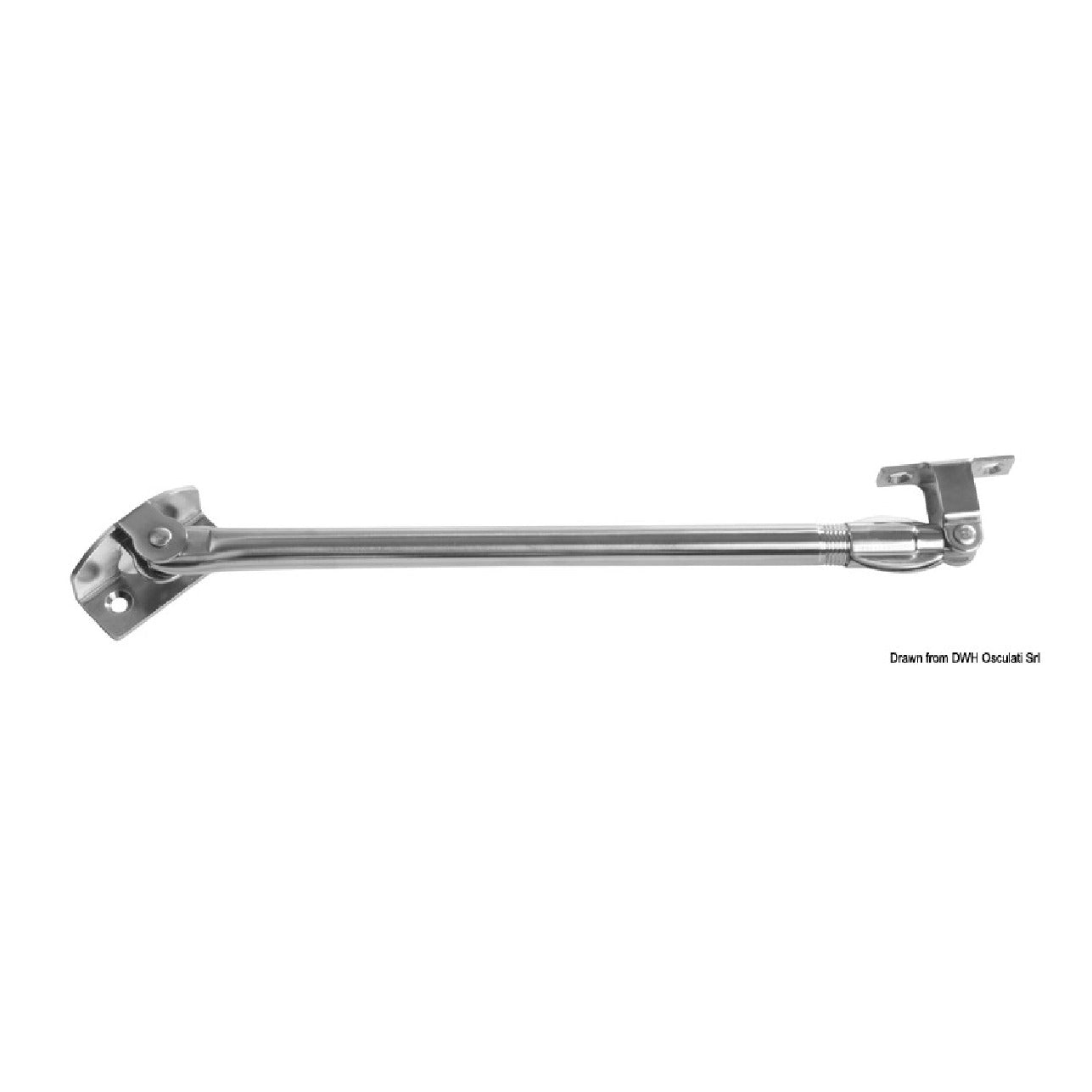

Braccetti e Compassi per Gavoni

Brackets and Compasses for Lockers

Locker arms and compasses are essential accessories for ensuring controlled, safe, and durable opening of hatches, lockers, doors, and covers on board.

⚙️ BRACKETS FOR LOCKERS

Lift arms (or pistons) help lift and support lids or hatches, preventing accidental closing and facilitating access.

✅ Main types:

Type Characteristics Typical use
Gas-assisted (shock absorbers) They contain pressurized gas, smooth opening Heavy lockers, engine covers
Friction mechanics With internal clutch, they stop in any position Lighter doors
Spring loaded Constant thrust, cheaper Small or vertical lockers

📐 Technical specifications:

  • Force (N): 100 to 800 N depending on the weight of the lid

  • Stroke: variable extension length (e.g. 200 mm, 300 mm)

  • Materials: galvanized steel, AISI 316 stainless steel (recommended for marine environments)

  • Connections: ball, eyelet or adjustable joint

🛠️ Tips:

  • Always check the weight and length of the lid

  • Install two symmetrical stays on large or heavy lockers

  • In saline environments, choose only AISI 316 stainless steel or with an anti-corrosion finish

🧭 COMPASSES FOR LOCKERS

Compasses are mechanical (rigid) levers that regulate and limit the opening of doors and lids .

✅ Main types:

Type Function Characteristics
Simple compass Prevents complete opening Side fixing
Compass with lock Holds the hatch open at a certain angle Snap lock or clutch
Pantograph compass Double joint, stable and soft opening Ideal for seats, platforms

📐 Materials:

  • Stainless steel

  • Anodized aluminum

  • Technical plastic (reinforced ABS) for light boats or tenders

🔧 Assembly:

  • Generally fixed with stainless steel screws or rivets

  • The position of the fulcrum must be calculated for a smooth opening

  • In some models, the compass also acts as a secondary hinge

🛠️ Difference between brackets and compasses

Characteristic Gas lift arm Compass
Does it hold weight? ✅ ❌ (limit opening only)
Does it make opening easier? ✅ (automatic) ❌ (manual)
Block opening? Some models yes Some yes
Ideal material Stainless steel or galvanized Stainless steel, technical plastic

✅ Recommended kits for storage compartments

  • 2 × Stainless steel gas struts (300N)

  • 2 × Swivel brackets

  • 1 × Compass with mechanical lock (for extra safety)
