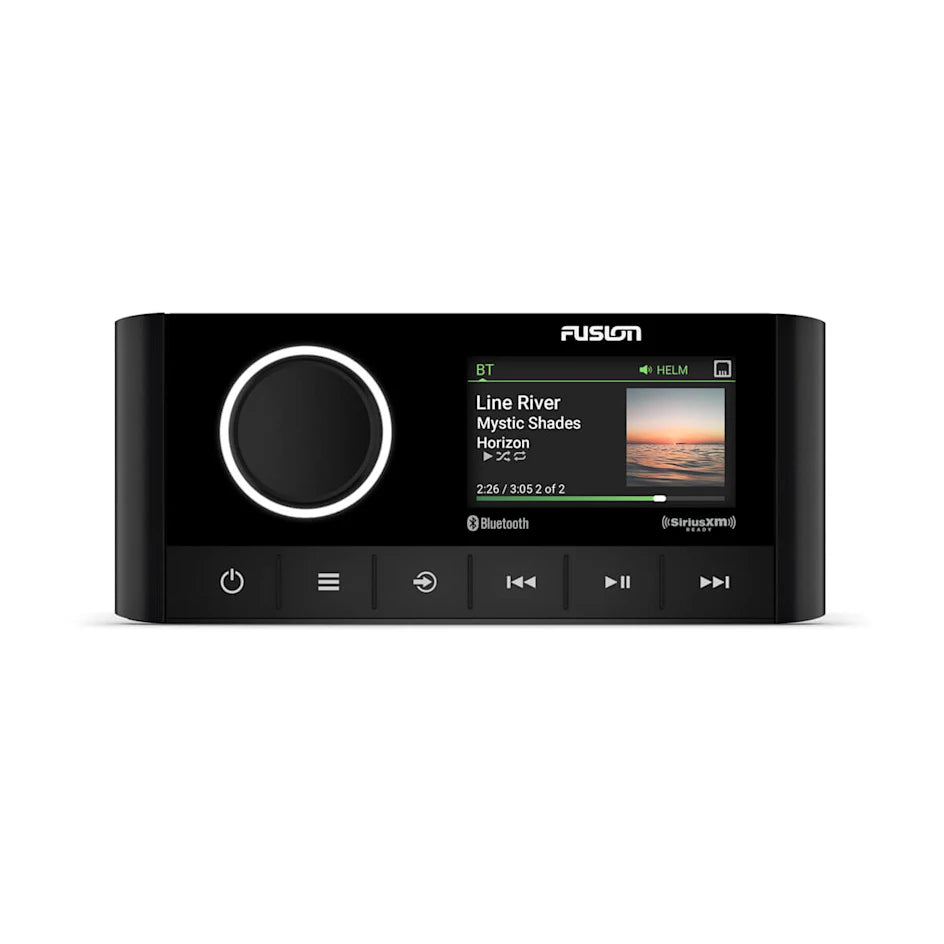

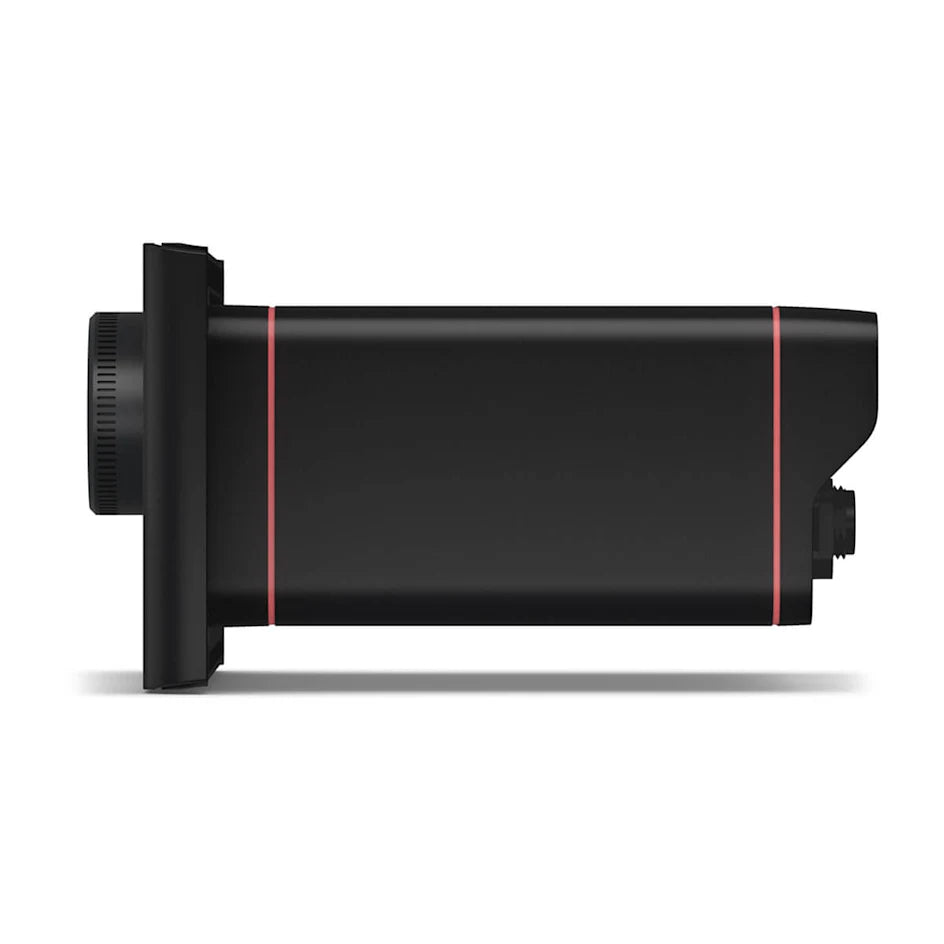

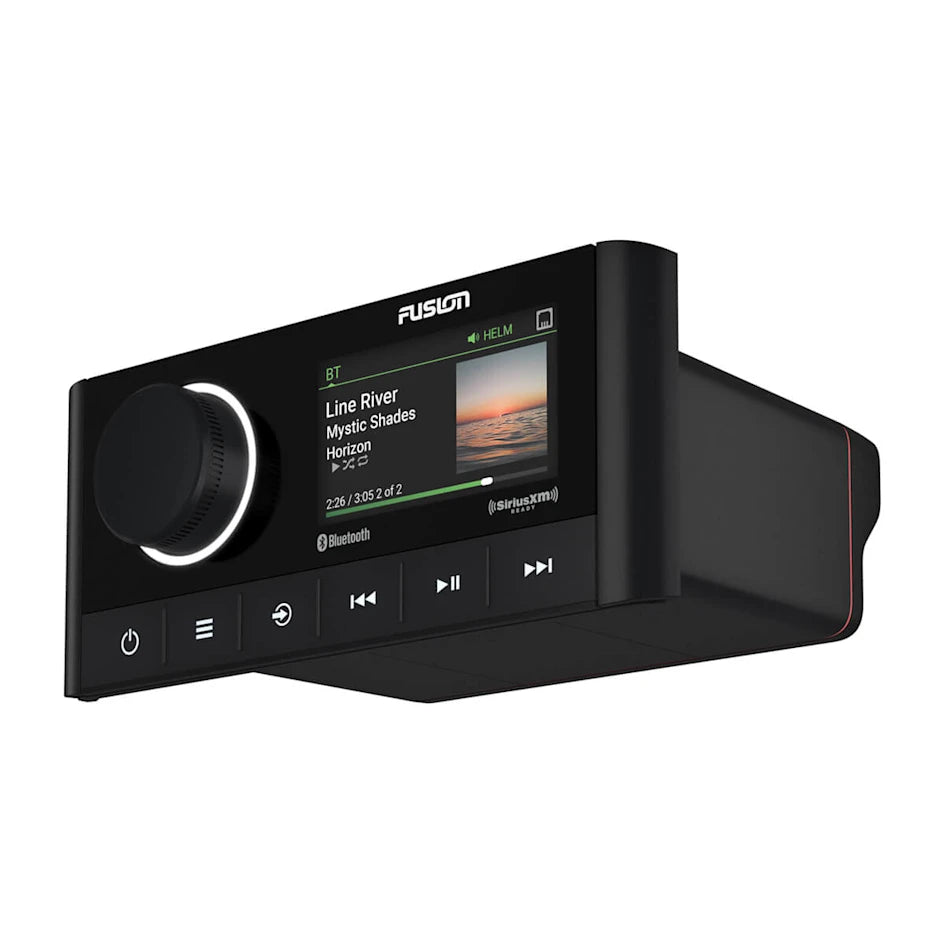

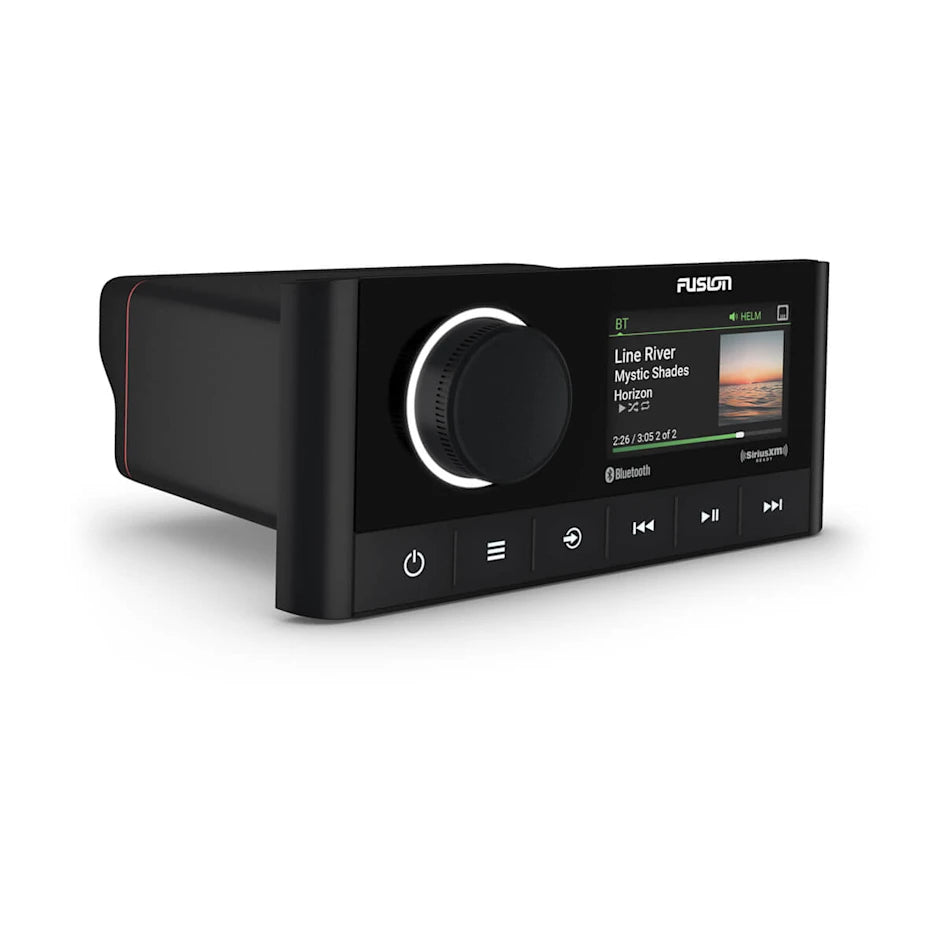

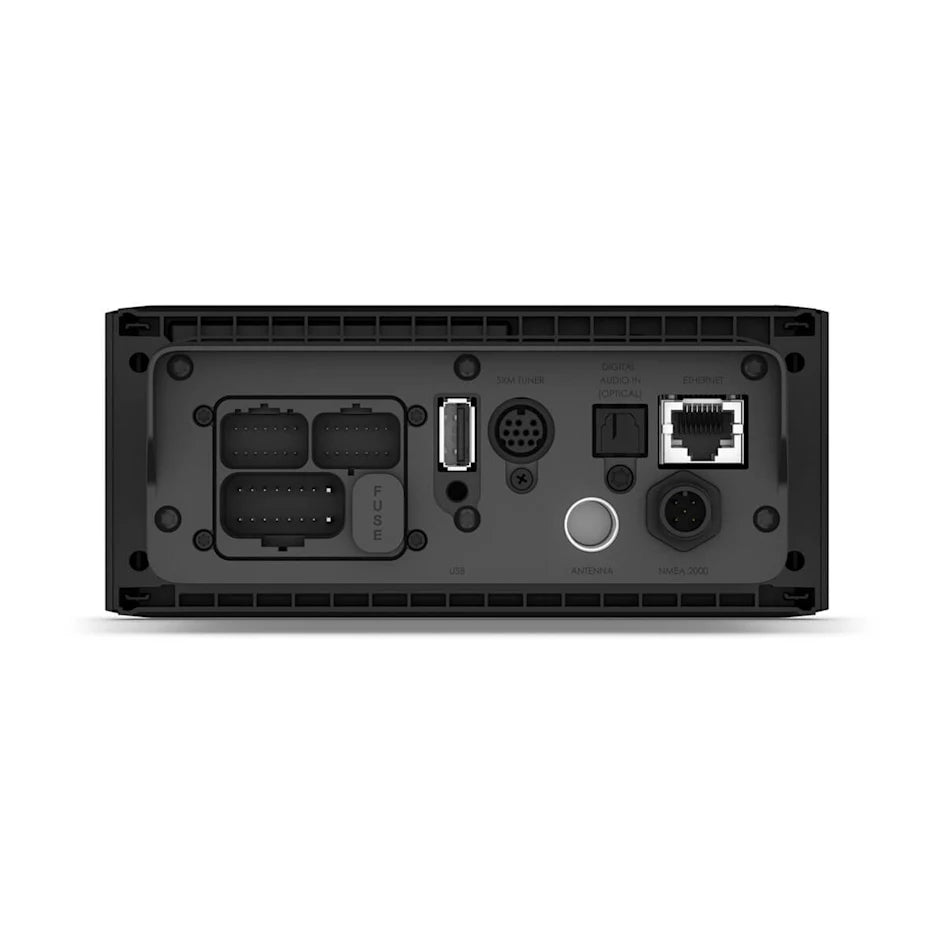

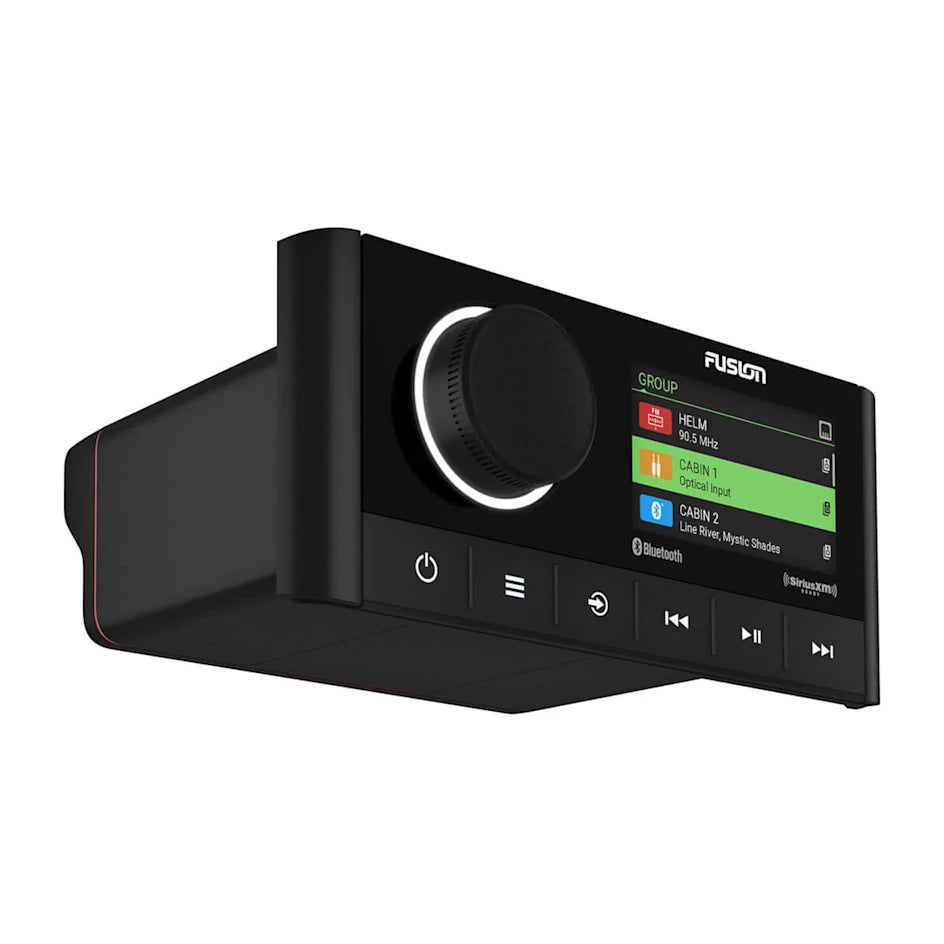

Garmin Fusion Apollo Marine Stereo with DSP 010-02138-00

The Fusion Apollo MS-RA670 marine stereo (part number 010-02138-00) represents an advanced solution for onboard audio, combining modern connectivity, power, and high-quality sound. It offers audio streaming via Wi-Fi and AirPlay 2 support, DSP (Digital Signal Processing) to optimize audio performance in marine environments, and multi-zone control for up to 3 independent zones. The front panel is designed to “True-Marine” standards, with an IPX6/IPX7 rating on the front and ruggedness designed for the salt, vibration, and humidity typical of the marine environment.

The color LCD interface simplifies navigation between sources (Bluetooth, USB, AUX, digital optical input, AM/FM, UPnP) and allows over-the-air firmware updates. Compatibility with PartyBus™ networks and on-board multifunction displays/instruments allows for seamless integration into your boat's audio system.

Main features

• Color LCD display
• Built-in Wi-Fi with audio streaming, AirPlay 2 support
• Integrated DSP technology for audio optimization
• Multi-zone management up to 3 independent audio zones
• Support for multiple sources: Bluetooth, USB, AUX, digital optical input, AM/FM, UPnP
• Front panel with IPX6/IPX7 protection rating; electronics designed for nautical environments
• PartyBus™ network compatibility for audio synchronization across multiple units
• Integration with multifunction displays, NMEA 2000 networks and boat remote controls

Advantages and benefits

1. High and customizable audio quality thanks to the DSP: adjustable bass, treble and ambience
2. Smooth, high-quality streaming with Wi-Fi and AirPlay 2: convenient for listening to music from modern services/apps
3. Versatility of use thanks to the multi-zone: each area of ​​the boat can have its own music or be synchronized
4. Simplified installation and control: intuitive interface, digital network support, firmware updates
5. Reliability at sea: “True-Marine” design engineered to withstand spray, salinity, vibration and marine conditions

Package Contents

• Fusion Apollo MS-RA670 Main Unit (Part No. 010-02138-00)
• Gasket for assembly and front cover
• Cables and connectors for power, speakers, audio input/output
• Installation documentation and quick start guide

Technical specifications

Audio performance and power

• Manageable audio zones: up to 3 zones
• Indicative peak power: approximately 280 W (depends on configuration)
• Amplifier type: Class D
• Operating voltage: 10.8 – 16 V DC
• DSP filters, bass boost, available audio profiles

Construction & Environment

• Front protection rating: IPX6 / IPX7
• Operating temperature range: 0°C – +50°C
• NMEA 2000 compatibility, PartyBus™ network support
• Approximate dimensions: Width approx. 157mm, height approx. 68mm, depth approx. 123mm
