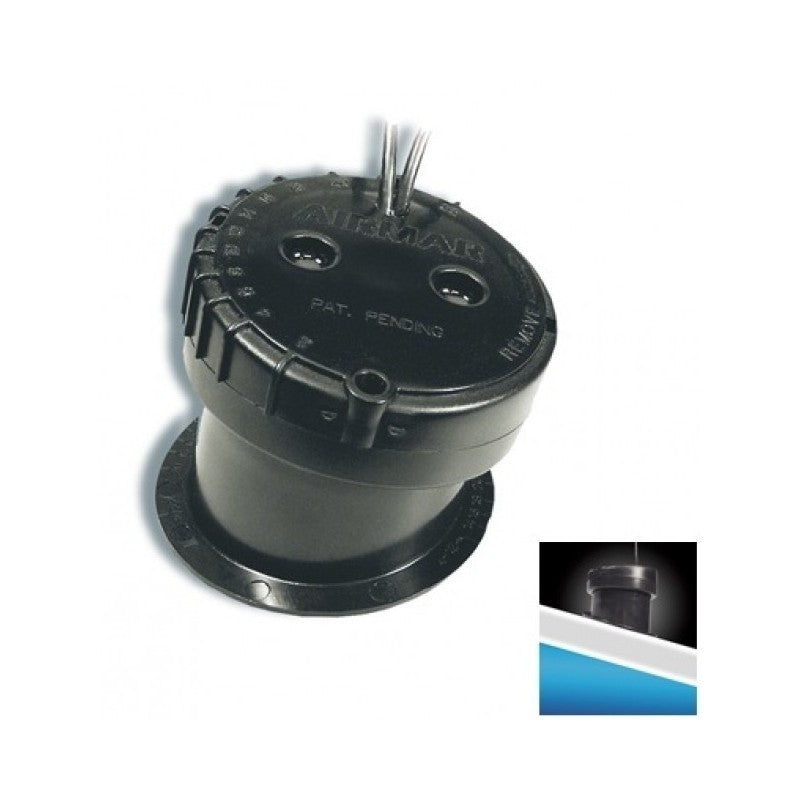

Lowrance P79 9-Pin Transducer

The Lowrance P79 9-PIN Transducer is a sleek, no-drill solution for reliable depth measurements on light boats, RIBs, powerboats and small sailboats (up to approximately 8 m), designed to accommodate deadrises up to 22°.

MAIN FEATURES:

• Dual-frequency 50/200 kHz: wide cone (~45°) for excursions up to ~300 m and narrow cone (~12°) for details up to ~180 m
• 600 W RMS: ideal for inshore use with a clear and reliable signal

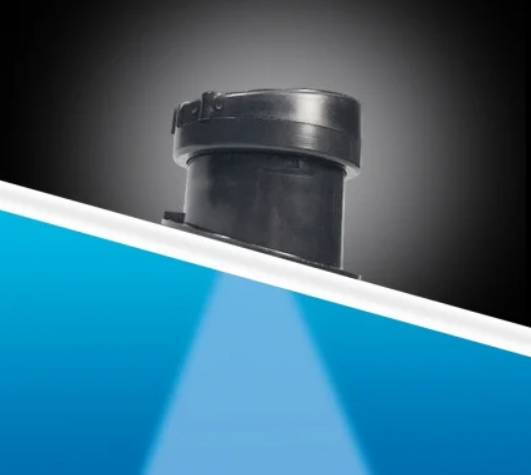

• Internal “shoot-through” installation: plastic base + conforming liquid → no external protrusions and no drilling in the hull shell .
• Adjustable tilt from 2° to 22° : ensures the sonar beam points downward for maximum accuracy
• xSonic 9‑pin black connector , plug‑and‑play with Lowrance HDS Gen3, Carbon, Elite Ti, Simrad NSS evo2/evo3 displays etc.
• Compatible with Lowrance/Simrad/BG instruments with 9-pin Xsonic connector such as Elite-ti, Elite-ti2, Elite FS, HDS LIVE, GO, NSSEVO3. Can be connected to instruments with 7-pin blue sonar connector for Hook, Elite HDI/Chirp, HDSGEN1-2-3, GEN2 Touch, Hds Carbon, NSSEVO, Vulcan via adapter 5605251.

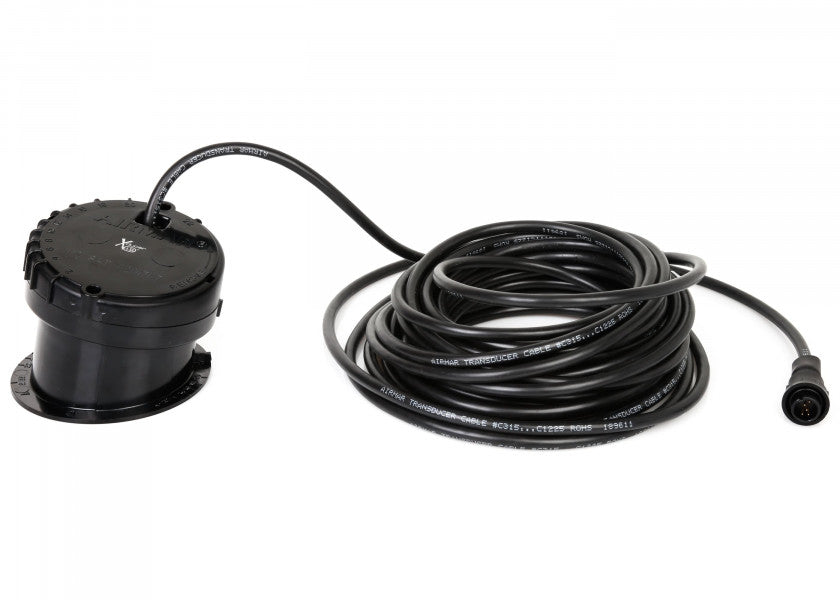

• Integrated 12 m cable (extendable by 3 m with accessory 5605249)
• DOES NOT ALLOW THE USE OF STRUCTURESCAN, SIDESCAN

1. Precise depth without scratching the hull.
2. Clean, reversible installation, ideal for boats in storage or trailer.
3. Dual-frequency and high power for shallow and medium waters.
4. No built-in temperature sensor (depth only).
